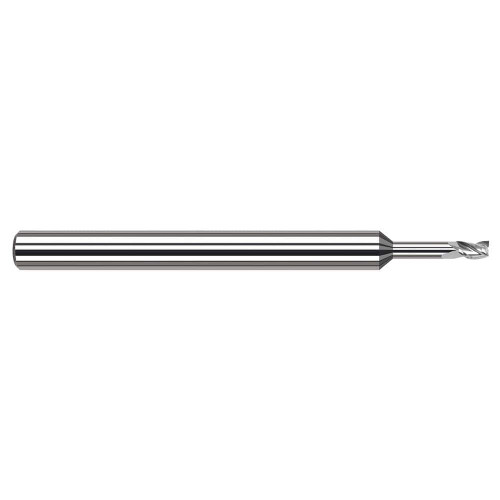

Harvey Tool Square End Mill: 9/64" Dia, .220" LOC, 3" OAL, 3/4" Reach, 4 Flute, Uncoated, 861709

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-861709
$63.00

Harvey Tool square end mill, 4 flutes, center cutting. Solid carbide, uncoated. Manufacturer part number 861709.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1406
Length of Cut (Decimal)
0.2200
Shank Diameter (Decimal)
0.1875
Number of Flutes
4
Overall Length (Decimal)
3.0000
Coating/Finish
Uncoated
Neck Diameter (Decimal)
0.1360
Shank Diameter (Fractional)
3/16
Overall Length (Fractional)
3
Size System
Fractional
Cutting Diameter (Fractional)
9/64
Center Cutting
Yes
Reach Multiple
5x
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Square
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Decimal)
0.7500
Reach (Fractional)
3/4
Harvey Tool Square End Mill: 9/64" Dia, .220" LOC, 3" OAL, 3/4" Reach, 4 Flute, Uncoated, 861709
$63.00
