HT - 864008-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-864008-C3
$151.40

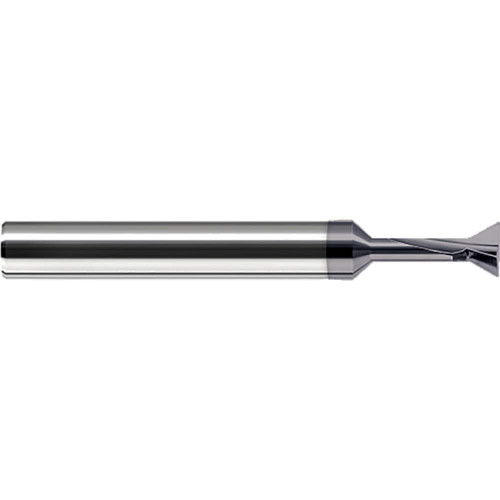

0.1250" (1/8) Cutter DIA x 0.0100" Radius x 0.1250" (1/8) Neck Length x 40° included Carbide Dovetail Cutter, 2 Flutes, AlTiN Coated

Specifications

Unit of Measure
Fractional
Diameter
1/8 Inch
Shank Size
1/8 Inch
Overall Length
1-1/2 Inch
Coating/Finish
C3
Length of Cut (Decimal)
0.10
Length of Cut (Fractional)
3/32
Overall Length (Decimal)
1.50
Neck Diameter (Decimal)
0.07
Corner Radius (Decimal)
0.01
Number of Flutes
2
Diameter (Decimal)
0.13
Included Angle
40 degrees
Neck Length (Decimal)
0.13
Neck Length (Fractional)
1/8
Shank Size (Decimal)
0.13
Angle per Side
20 degrees
HT - 864008-C3
$151.40
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
