HT - 864032

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-864032
$263.10

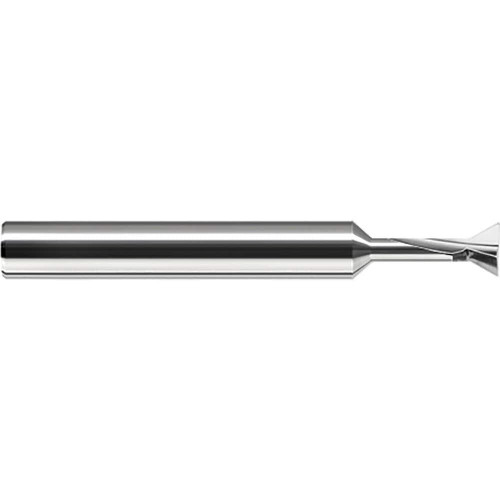

0.5000" (1/2) Cutter DIA x 0.0100" Radius x 0.2500" (1/4) Neck Length x 40° included Carbide Dovetail Cutter, 3 Flutes

Specifications

Unit of Measure
Fractional
Diameter
1/2 Inch
Shank Size
1/2 Inch
Coating/Finish
UN
Length of Cut (Decimal)
0.32
Length of Cut (Fractional)
5/16
Overall Length (Decimal)
3
Neck Diameter (Decimal)
0.29
Corner Radius (Decimal)
0.01
Number of Flutes
3
Diameter (Decimal)
0.50
Included Angle
40 degrees
Neck Length (Decimal)
0.25
Neck Length (Fractional)
1/4
Neck Diameter (Fractional)
9/32
Shank Size (Decimal)
0.5
Angle per Side
20 degrees
HT - 864032
$263.10
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
