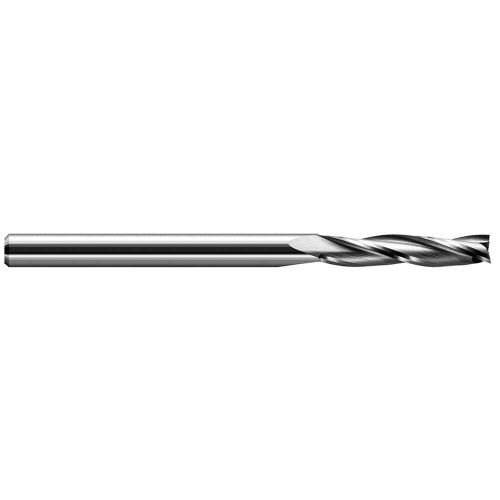

Harvey Tool Square End Mill: 1/16" Dia, 5/8" LOC, 2" OAL, 3 Flute, Uncoated, 871662

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-871662
$83.20

Harvey Tool square end mill for plastics, 3 flutes, 22 degree helix, center cutting. Solid carbide, uncoated. Manufacturer part number 871662.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0620
Length of Cut (Decimal)
0.6250
Shank Diameter (Decimal)
0.1250
Number of Flutes
3
Overall Length (Decimal)
2.0000
Coating/Finish
Uncoated
Length of Cut (Fractional)
5/8
Type
II
Shank Diameter (Fractional)
1/8
Overall Length (Fractional)
2
Center Cutting
Yes
Cutting Diameter (Fractional)
1/16
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Square
Helix Angle
22 degrees
LxD Ratio
10xD
Material
Solid Carbide
Size System
Fractional
Workpiece Material
Plastics
Harvey Tool Square End Mill: 1/16" Dia, 5/8" LOC, 2" OAL, 3 Flute, Uncoated, 871662
$83.20
