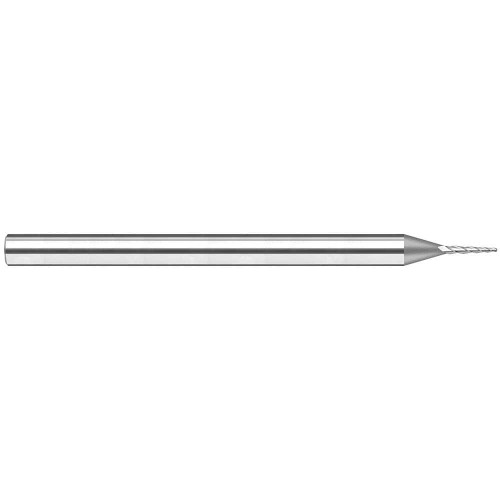

Harvey Tool Tapered End Mill: .060" Dia, 5/16" LOC, 1-1/2" OAL, 1° Per Side, 3 Flute, Uncoated, 879860

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-879860
$62.10

Harvey Tool tapered end mill, 3 flutes, ball end, center cutting. Solid carbide, uncoated. Manufacturer part number 879860.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0600
Length of Cut (Decimal)
0.3120
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
Uncoated
Length of Cut (Fractional)
5/16
Overall Length (Fractional)
1-1/2
Number of Flutes
3
Included Angle
2 degrees
Shank Diameter (Fractional)
1/8
Angle per Side
1 degrees
Size System
Decimal
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Ball
LxD Ratio
5xD
Material
Solid Carbide
Shank Tolerance
h6
Harvey Tool Tapered End Mill: .060" Dia, 5/16" LOC, 1-1/2" OAL, 1° Per Side, 3 Flute, Uncoated, 879860
$62.10
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
