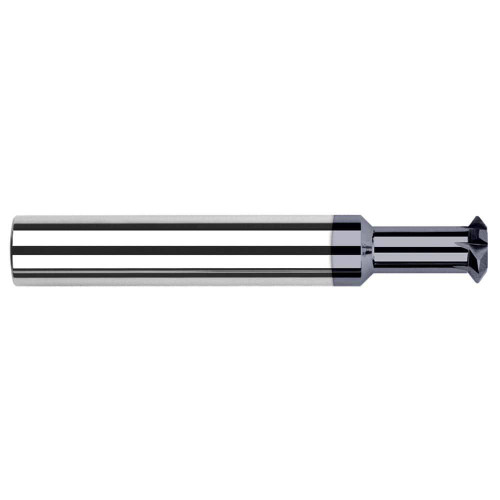

Harvey Tool Cutter: 3/8" Dia, 2-1/2" OAL, 6 Flute, AlTiN, 894124-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-894124-C3
$167.60

Harvey Tool cutter, 6 flutes, tip radius end. Solid carbide, AlTiN coating. Manufacturer part number 894124-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.3750
Shank Diameter (Decimal)
0.3750
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.2500
Number of Flutes
6
Included Angle
90 degrees
Neck Length (Decimal)
1.0000
Neck Length (Fractional)
1
Shank Diameter (Fractional)
3/8
Neck Diameter (Fractional)
1/4
Cutting Diameter (Fractional)
3/8
Radius (Decimal)
0.0150
Angle per Side
45 degrees
Radius (Fractional)
1/64
Cutter Width (Decimal)
0.1370
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Tip Radius
Material
Solid Carbide
Harvey Tool Cutter: 3/8" Dia, 2-1/2" OAL, 6 Flute, AlTiN, 894124-C3
$167.60
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
