HT - 896602-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-896602-C3
$99.90

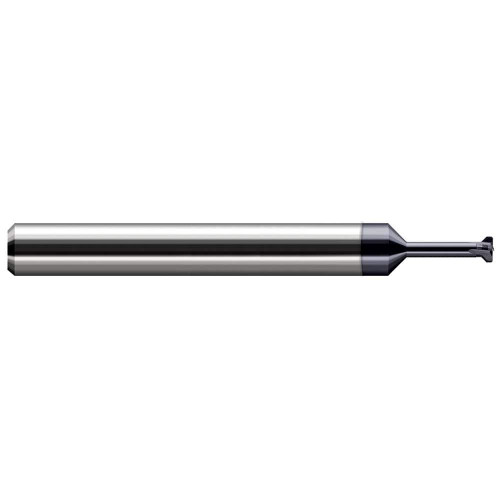

0.0660" Cutter DIA x 0.0150" (1/64) Width (TSC) x 0.1720" (11/64) Neck Length Carbide Thread Relief Cutter, 4 Flutes, AlTiN Coated

Specifications

Unit of Measure
Imperial
Diameter
0.07 Inch
Length of Cut
0.03 Inch
Shank Size
0.13 Inch
Overall Length
1.50 Inch
Coating/Finish
C3
Overall Length (Fractional)
1-1/2
Neck Diameter (Decimal)
0.04
Corner Radius (Decimal)
0.005
Number of Flutes
4
Included Angle
90 degrees
Neck Length (Decimal)
0.18
Neck Length (Fractional)
11/64
Shank Size (Fractional)
1/8 Inch
Radius (Decimal)
0.005
Angle per Side
45 degrees
End Length (Decimal)
0.02
Radial Depth of Cut (Decimal)
0.02
End Length (Fractional)
1/64
HT - 896602-C3
$99.90
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
