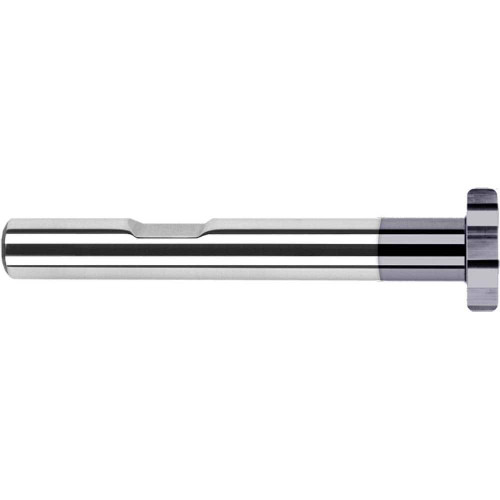

Harvey Tool Keyseat Cutter: 1" Dia, 1/4" Width, 12 Flute, AlTiN, 897570-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-897570-C3
$269.60

Harvey Tool keyseat cutter, 12 flutes, corner radius end, Weldon flat shank. Solid carbide, AlTiN coating. Manufacturer part number 897570-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
1.0000
Shank Diameter (Decimal)
0.5000
Overall Length (Decimal)
3.2500
Coating/Finish
AlTiN
Overall Length (Fractional)
3-1/4
Type
I
Corner Radius (Decimal)
0.0600
Shank Length (Decimal)
3.0000
Number of Flutes
12
Shank Diameter (Fractional)
1/2
Shank Length (Fractional)
3
Cutter Width (Decimal)
0.2500
Cutter Width (Fractional)
1/4
Radial Depth of Cut (Decimal)
0.2400
Top Corner Radius
0.06
Cutting Diameter (Fractional)
1
End Type
Corner Radius
Material
Solid Carbide
Shank Type
Weldon Flat
Size System
Fractional
