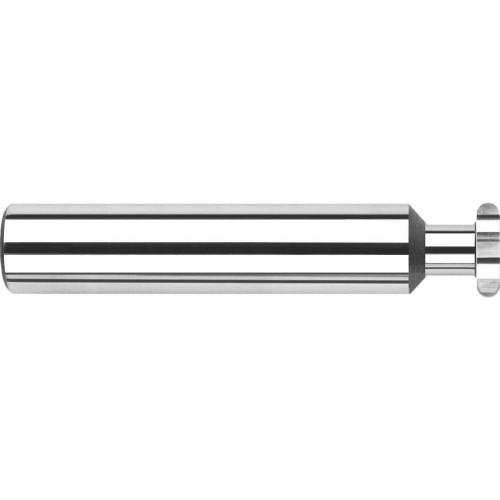

Harvey Tool Keyseat Cutter: 1/2" Dia, 3/16" Width, 6 Flute, Uncoated, 898593

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-898593
$181.20

Harvey Tool keyseat cutter, 6 flutes, ball end. Solid carbide, uncoated. Manufacturer part number 898593.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.5000
Shank Diameter (Decimal)
0.5000
Overall Length (Decimal)
3.0000
Coating/Finish
Uncoated
Type
II
Neck Diameter (Decimal)
0.1560
Number of Flutes
6
Neck Length (Decimal)
0.2500
Neck Length (Fractional)
1/4
Shank Diameter (Fractional)
1/2
Neck Diameter (Fractional)
5/32
Cutting Diameter (Fractional)
1/2
Radius (Decimal)
0.0938
Reach Multiple
0.5x
Radius (Fractional)
3/32
Cutter Width (Decimal)
0.1874
Radial Depth of Cut (Decimal)
0.1620
Cutter Width (Fractional)
3/16
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Ball
Material
Solid Carbide
Overall Length (Fractional)
3
Size System
Fractional
Harvey Tool Keyseat Cutter: 1/2" Dia, 3/16" Width, 6 Flute, Uncoated, 898593
$181.20
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
