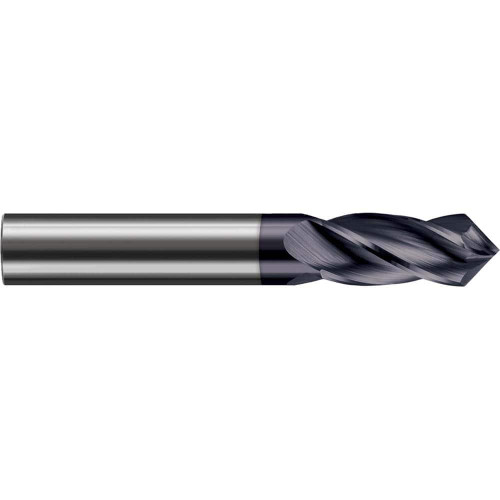

Harvey Tool Drill Mill: 1/4" Dia, 3/4" LOC, 2-1/2" OAL, 60° Included, 4 Flute, AlTiN Nano, 899216-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-899216-C6
$116.70

Harvey Tool drill mill, 4 flutes, variable helix, mill style end. Solid carbide, AlTiN Nano coating. Manufacturer part number 899216-C6.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
0.7500
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN Nano
Length of Cut (Fractional)
3/4
Overall Length (Fractional)
2-1/2
Number of Flutes
4
Included Angle
60 degrees
Cutting Diameter (Fractional)
1/4
Shank Diameter (Fractional)
1/4
Cutting Diameter (Decimal)
0.2500
Angle per Side
30 degrees
Size System
Fractional
Web Thickness (Decimal)
0.0090
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Mill Style
LxD Ratio
3xD
Material
Solid Carbide
Shank Tolerance
h6
Variable Helix
Yes
Harvey Tool Drill Mill: 1/4" Dia, 3/4" LOC, 2-1/2" OAL, 60° Included, 4 Flute, AlTiN Nano, 899216-C6
$116.70
