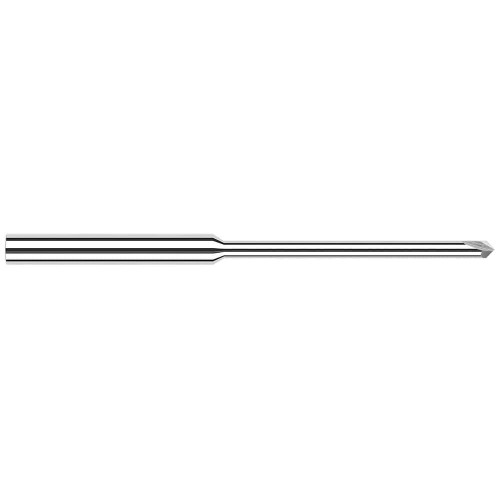

Harvey Tool Chamfer Mill: 1/8" Shank x 3/64" LOC x 2-1/2" OAL, 90° Included, 2 Flute, Uncoated, 902845

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-902845
$56.90

Harvey Tool chamfer mill, 2 flutes, pointed end. Solid carbide, uncoated. Manufacturer part number 902845.

Specifications

Unit of Measure
Inch
Length of Cut (Fractional)
3/64
Shank Diameter (Fractional)
1/8
Overall Length (Fractional)
2-1/2
Coating/Finish
Uncoated
Length of Cut (Decimal)
0.0470
Overall Length (Decimal)
2.5000
Neck Diameter (Decimal)
0.0930
Type
I
Neck Diameter (Fractional)
3/32
Number of Flutes
2
Included Angle
90 degrees
Reach (Decimal)
1.4000
Shank Diameter (Decimal)
0.1250
Angle per Side
45 degrees
Reach Multiple
15x
Tip Thickness (Decimal)
0.0060
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0010
End Type
Pointed
Material
Solid Carbide
Harvey Tool Chamfer Mill: 1/8" Shank x 3/64" LOC x 2-1/2" OAL, 90° Included, 2 Flute, Uncoated, 902845
$56.90
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
