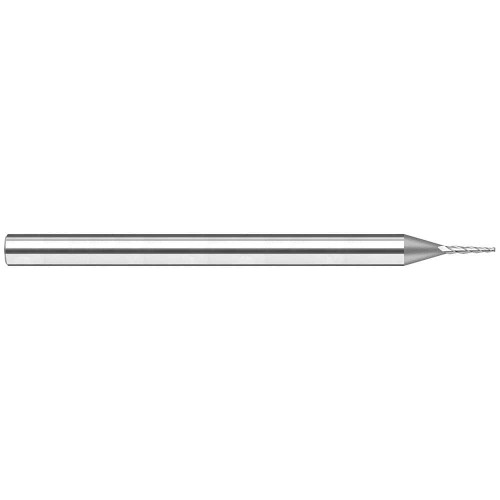

Harvey Tool Tapered End Mill: .090" Dia, 1/2" LOC, 2-1/2" OAL, 8° Per Side, 3 Flute, Uncoated, 903790

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-903790
$108.60

Harvey Tool tapered end mill, 3 flutes, square end, center cutting. Solid carbide, uncoated. Manufacturer part number 903790.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0900
Length of Cut (Decimal)
0.5000
Shank Diameter (Decimal)
0.2500
Number of Flutes
3
Overall Length (Decimal)
2.5000
Coating/Finish
Uncoated
Length of Cut (Fractional)
1/2
Overall Length (Fractional)
2-1/2
Included Angle
16 degrees
Shank Diameter (Fractional)
1/4
Angle per Side
8 degrees
Size System
Decimal
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
5xD
Material
Solid Carbide
Shank Tolerance
h6
