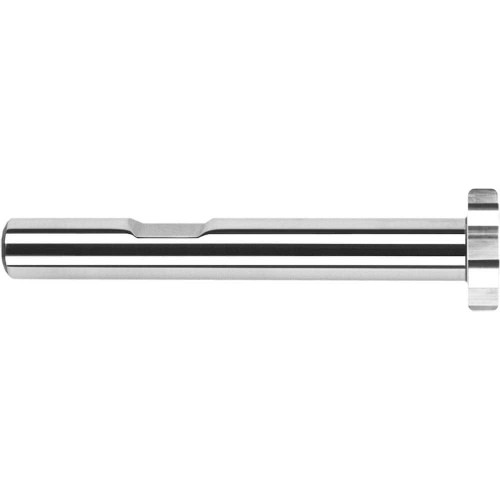

Harvey Tool Keyseat Cutter: 3/4" Dia, 3/32" Width, 10 Flute, Uncoated, 905240

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-905240
$188.40

Harvey Tool keyseat cutter, 10 flutes, corner radius end, Weldon flat shank. Solid carbide, uncoated. Manufacturer part number 905240.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.7500
Shank Diameter (Decimal)
0.3750
Overall Length (Decimal)
3.0930
Coating/Finish
Uncoated
Overall Length (Fractional)
3-3/32
Type
I
Corner Radius (Decimal)
0.0300
Shank Length (Decimal)
3.0000
Number of Flutes
10
Shank Diameter (Fractional)
3/8
Shank Length (Fractional)
3
Cutting Diameter (Fractional)
3/4
Cutter Width (Decimal)
0.0930
Cutter Width (Fractional)
3/32
Radial Depth of Cut (Decimal)
0.1770
Top Corner Radius
0.03
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Corner Radius
Material
Solid Carbide
Shank Type
Weldon Flat
Size System
Fractional
Harvey Tool Keyseat Cutter: 3/4" Dia, 3/32" Width, 10 Flute, Uncoated, 905240
$188.40
