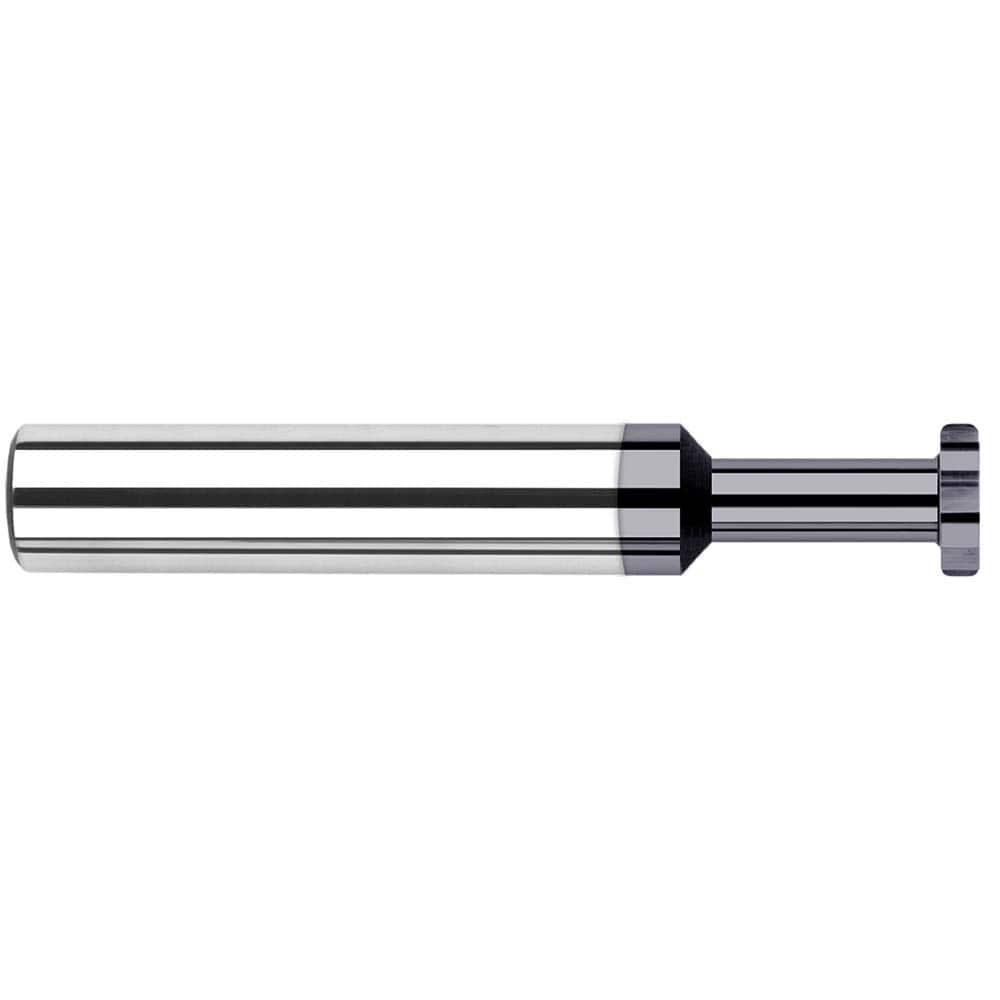

Harvey Tool Keyseat Cutter: 3/8" Dia, 1/4" Width, 8 Flute, AlTiN, 905980-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-905980-C3
$154.60

Harvey Tool keyseat cutter, 8 flutes, corner radius end. Solid carbide, AlTiN coating. Manufacturer part number 905980-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.3750
Shank Diameter (Decimal)
0.3750
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Type
I
Corner Radius (Decimal)
0.0300
Neck Diameter (Decimal)
0.1870
Number of Flutes
8
Neck Length (Decimal)
0.5620
Neck Length (Fractional)
9/16
Shank Diameter (Fractional)
3/8
Neck Diameter (Fractional)
3/16
Cutting Diameter (Fractional)
3/8
Reach Multiple
1.5x
Cutter Width (Decimal)
0.2500
Cutter Width (Fractional)
1/4
Radial Depth of Cut (Decimal)
0.0840
Top Corner Radius
0.03
End Type
Corner Radius
Material
Solid Carbide
Size System
Fractional
Harvey Tool Keyseat Cutter: 3/8" Dia, 1/4" Width, 8 Flute, AlTiN, 905980-C3
$154.60
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
