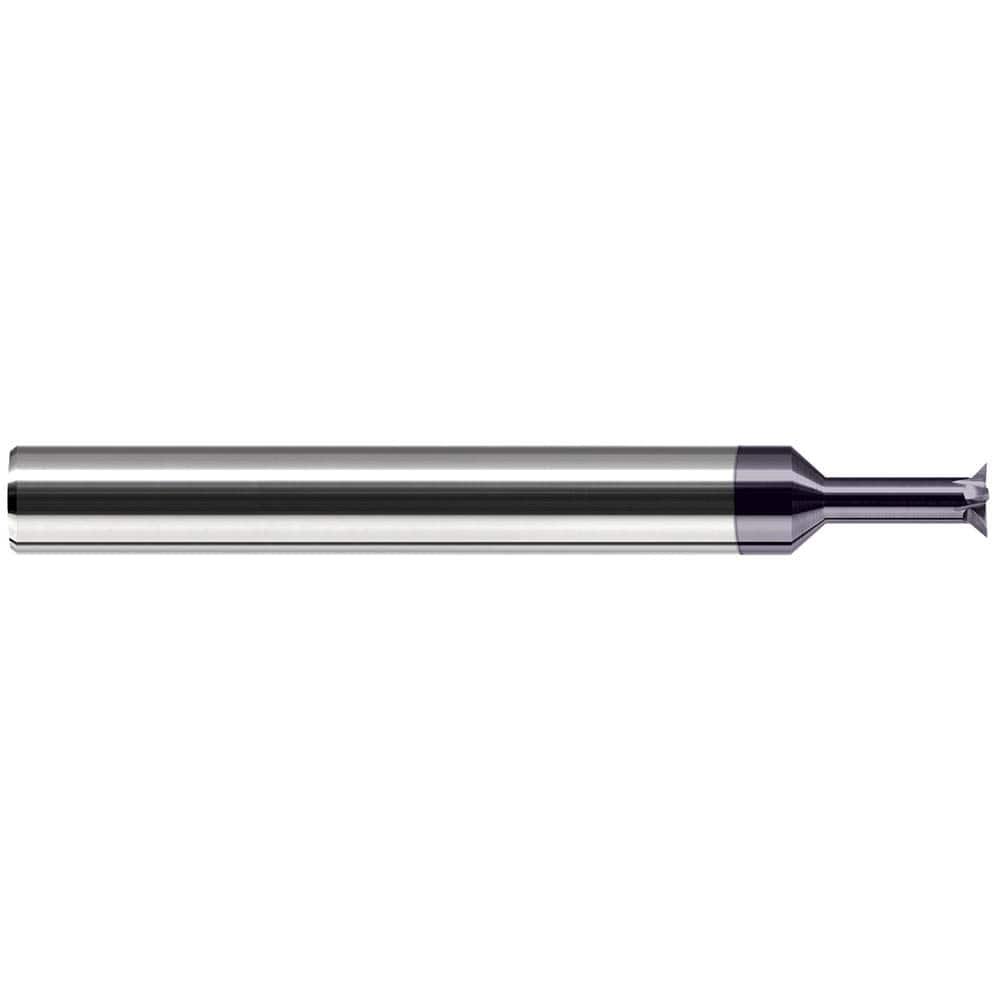

Harvey Tool Chamfer Mill: 1/8" Shank x .020" LOC x 1-1/2" OAL, 90° Included, 4 Flute, Uncoated, 906015

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-906015
$101.00

Harvey Tool chamfer mill, 4 flutes, back chamfer end. Solid carbide, uncoated. Manufacturer part number 906015.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
0.0200
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
Uncoated
Overall Length (Fractional)
1-1/2
Neck Diameter (Decimal)
0.0680
Number of Flutes
4
Included Angle
90 degrees
Neck Length (Fractional)
7/64
Shank Diameter (Fractional)
1/8
Angle per Side
45 degrees
Reach Multiple
1.5x
Neck Length (Decimal)
0.1090
Head Diameter (Decimal)
0.1150
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0010
End Type
Back Chamfer
Material
Solid Carbide
Harvey Tool Chamfer Mill: 1/8" Shank x .020" LOC x 1-1/2" OAL, 90° Included, 4 Flute, Uncoated, 906015
$101.00
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
