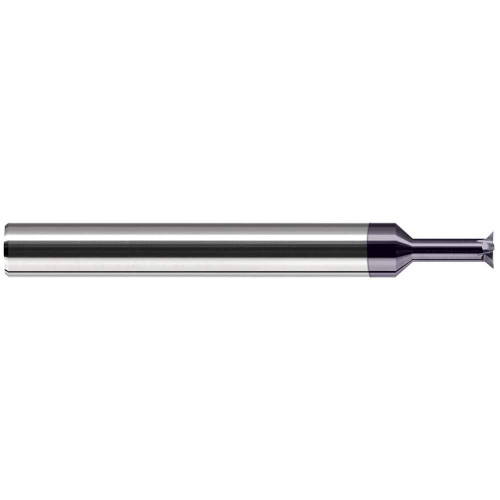

Harvey Tool Chamfer Mill: 1/4" Shank x .044" LOC x 2-1/2" OAL, 90° Included, 5 Flute, AlTiN, 906116-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-906116-C3
$143.50

Harvey Tool chamfer mill, 5 flutes, back chamfer end. Solid carbide, AlTiN coating. Manufacturer part number 906116-C3.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
0.0440
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.1560
Number of Flutes
5
Included Angle
90 degrees
Neck Length (Fractional)
1/4
Shank Diameter (Fractional)
1/4
Neck Diameter (Fractional)
5/32
Angle per Side
45 degrees
Reach Multiple
1.5x
Neck Length (Decimal)
0.2500
Head Diameter (Decimal)
0.2500
Head Diameter (Fractional)
1/4
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Back Chamfer
Material
Solid Carbide
Harvey Tool Chamfer Mill: 1/4" Shank x .044" LOC x 2-1/2" OAL, 90° Included, 5 Flute, AlTiN, 906116-C3
$143.50
