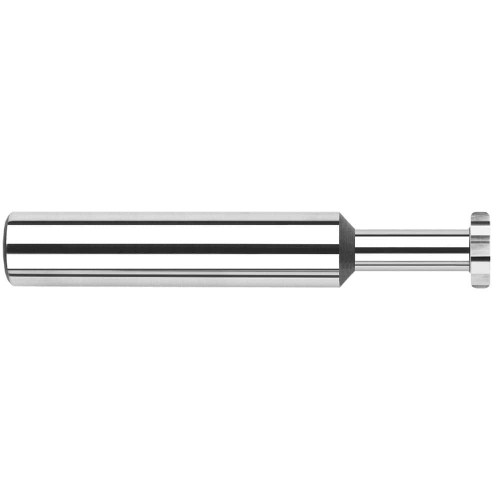

Harvey Tool Keyseat Cutter: 3/32" Dia, 1/32" Width, 4 Flute, Uncoated, 909131

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-909131
$85.00

Harvey Tool keyseat cutter, 4 flutes, corner radius end. Solid carbide, uncoated. Manufacturer part number 909131.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0930
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
Uncoated
Overall Length (Fractional)
1-1/2
Type
I
Corner Radius (Decimal)
0.0100
Neck Diameter (Decimal)
0.0470
Number of Flutes
4
Neck Length (Decimal)
0.1410
Shank Diameter (Fractional)
1/8
Neck Diameter (Fractional)
3/64
Cutting Diameter (Fractional)
3/32
Reach Multiple
1.5x
Cutter Width (Decimal)
0.0310
Cutter Width (Fractional)
1/32
Radial Depth of Cut (Decimal)
0.0210
Top Corner Radius
0.01
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Corner Radius
Material
Solid Carbide
Neck Length (Fractional)
9/64
Size System
Fractional
Harvey Tool Keyseat Cutter: 3/32" Dia, 1/32" Width, 4 Flute, Uncoated, 909131
$85.00
