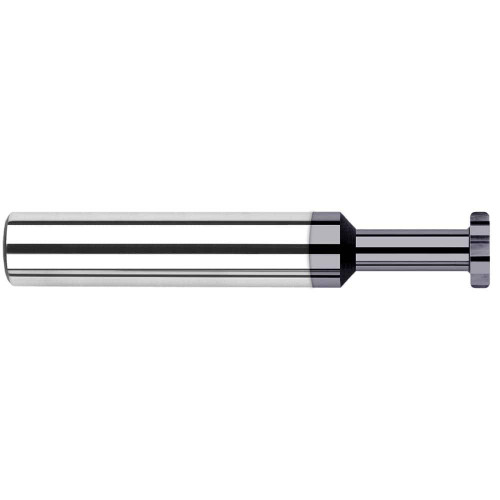

Harvey Tool Keyseat Cutter: 3/32" Dia, 1/16" Width, 4 Flute, AlTiN, 909162-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-909162-C3
$92.60

Harvey Tool keyseat cutter, 4 flutes, corner radius end. Solid carbide, AlTiN coating. Manufacturer part number 909162-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0930
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
1-1/2
Type
I
Corner Radius (Decimal)
0.0100
Neck Diameter (Decimal)
0.0470
Number of Flutes
4
Neck Length (Decimal)
0.1410
Shank Diameter (Fractional)
1/8
Neck Diameter (Fractional)
3/64
Cutting Diameter (Fractional)
3/32
Reach Multiple
1.5x
Cutter Width (Decimal)
0.0620
Cutter Width (Fractional)
1/16
Radial Depth of Cut (Decimal)
0.0210
Top Corner Radius
0.01
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Corner Radius
Material
Solid Carbide
Neck Length (Fractional)
9/64
Size System
Fractional
Harvey Tool Keyseat Cutter: 3/32" Dia, 1/16" Width, 4 Flute, AlTiN, 909162-C3
$92.60
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
