Harvey Tool Keyseat Cutter: 1" Dia, 3/16" Width, 12 Flute, Uncoated, 910060

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-910060
$220.40

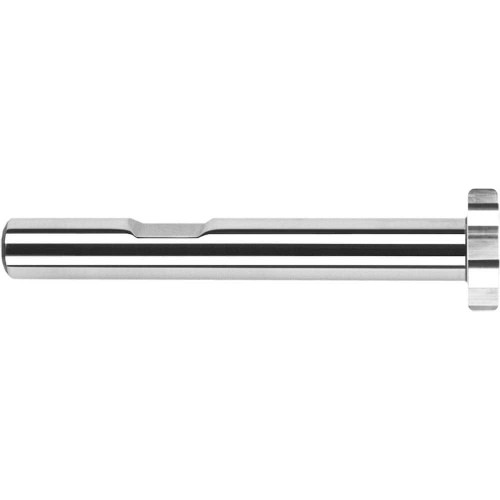

Harvey Tool keyseat cutter, 12 flutes, corner radius end, Weldon flat shank. Solid carbide, uncoated. Manufacturer part number 910060.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
1.0000
Shank Diameter (Decimal)
0.5000
Overall Length (Decimal)
3.1870
Coating/Finish
Uncoated
Overall Length (Fractional)
3-3/16
Type
I
Corner Radius (Decimal)
0.0300
Shank Length (Decimal)
3.0000
Number of Flutes
12
Shank Diameter (Fractional)
1/2
Shank Length (Fractional)
3
Cutter Width (Decimal)
0.1870
Cutter Width (Fractional)
3/16
Radial Depth of Cut (Decimal)
0.2400
Top Corner Radius
0.03
Cutting Diameter (Fractional)
1
End Type
Corner Radius
Material
Solid Carbide
Shank Type
Weldon Flat
Size System
Fractional
Harvey Tool Keyseat Cutter: 1" Dia, 3/16" Width, 12 Flute, Uncoated, 910060
$220.40
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
