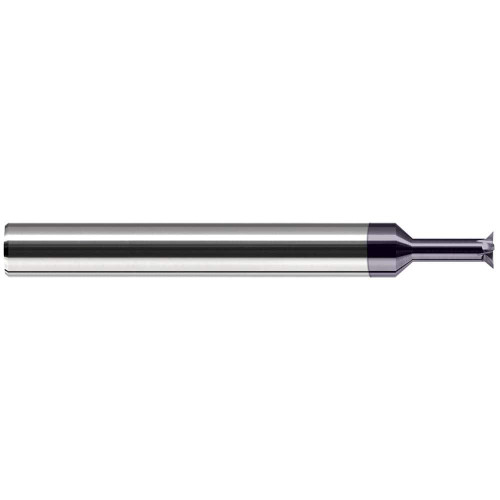

Harvey Tool Chamfer Mill: 1/8" Shank x .014" LOC x 1-1/2" OAL, 90° Included, 4 Flute, AlTiN, 910380-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-910380-C3
$109.70

Harvey Tool chamfer mill, 4 flutes, back chamfer end. Solid carbide, AlTiN coating. Manufacturer part number 910380-C3.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
0.0140
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
1-1/2
Neck Diameter (Decimal)
0.0470
Number of Flutes
4
Included Angle
90 degrees
Neck Length (Fractional)
3/8
Shank Diameter (Fractional)
1/8
Neck Diameter (Fractional)
3/64
Angle per Side
45 degrees
Reach Multiple
8x
Neck Length (Decimal)
0.3750
Head Diameter (Decimal)
0.0800
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0010
End Type
Back Chamfer
Material
Solid Carbide
Harvey Tool Chamfer Mill: 1/8" Shank x .014" LOC x 1-1/2" OAL, 90° Included, 4 Flute, AlTiN, 910380-C3
$109.70
