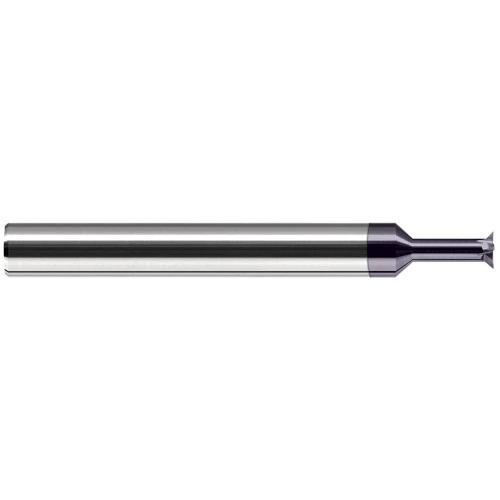

Harvey Tool Chamfer Mill: 1/2" Shank x .088" LOC x 4" OAL, 90° Included, 6 Flute, AlTiN, 910480-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-910480-C3
$237.80

Harvey Tool chamfer mill, 6 flutes, back chamfer end. Solid carbide, AlTiN coating. Manufacturer part number 910480-C3.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
0.0880
Shank Diameter (Decimal)
0.5000
Overall Length (Fractional)
4
Coating/Finish
AlTiN
Overall Length (Decimal)
4.0000
Neck Diameter (Decimal)
0.3170
Number of Flutes
6
Included Angle
90 degrees
Neck Length (Fractional)
2-1/2
Shank Diameter (Fractional)
1/2
Angle per Side
45 degrees
Reach Multiple
8x
Neck Length (Decimal)
2.5000
Head Diameter (Decimal)
0.5000
Head Diameter (Fractional)
1/2
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Back Chamfer
Material
Solid Carbide
Harvey Tool Chamfer Mill: 1/2" Shank x .088" LOC x 4" OAL, 90° Included, 6 Flute, AlTiN, 910480-C3
$237.80
