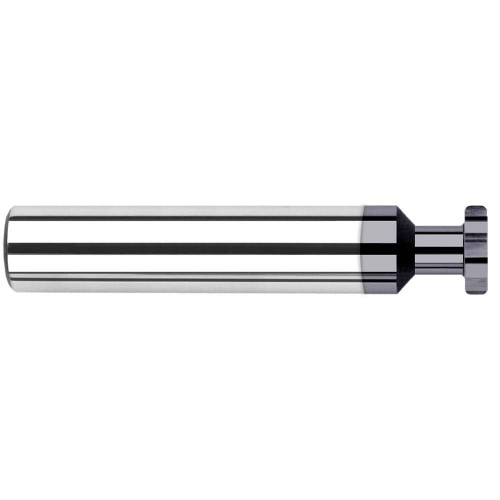

Harvey Tool Keyseat Cutter: 1/4" Dia, 3/32" Width, 6 Flute, AlTiN, 911793-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-911793-C3
$123.20

Harvey Tool keyseat cutter, 6 flutes, corner radius end. Solid carbide, AlTiN coating. Manufacturer part number 911793-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.2500
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Type
II
Corner Radius (Decimal)
0.0100
Neck Diameter (Decimal)
0.0780
Number of Flutes
6
Neck Length (Decimal)
0.1250
Neck Length (Fractional)
1/8
Shank Diameter (Fractional)
1/4
Neck Diameter (Fractional)
5/64
Cutting Diameter (Fractional)
1/4
Reach Multiple
0.5x
Cutter Width (Decimal)
0.0930
Cutter Width (Fractional)
3/32
Radial Depth of Cut (Decimal)
0.0760
Top Corner Radius
0.01
End Type
Corner Radius
Material
Solid Carbide
Size System
Fractional
Harvey Tool Keyseat Cutter: 1/4" Dia, 3/32" Width, 6 Flute, AlTiN, 911793-C3
$123.20
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
