HT - 922508

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-922508
$88.30

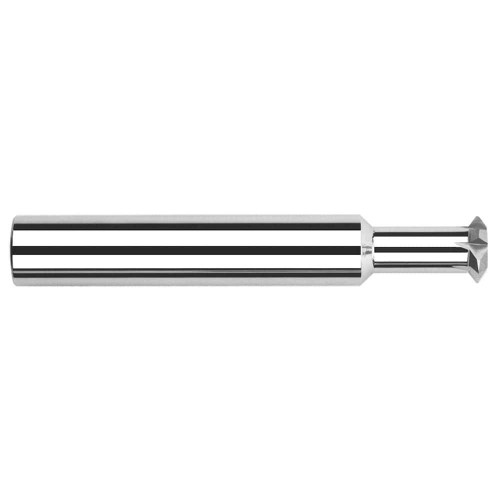

0.1250" (1/8) Cutter DIA x 0.0050" Radius x 0.0420" Width x 0.1870" (3/16) Neck Length Carbide Double Angle Shank Cutter, 4 Flutes

Specifications

Unit of Measure
Imperial
Diameter
0.13 Inch
Shank Size
0.13 Inch
Overall Length
1.50 Inch
Coating/Finish
UN
Overall Length (Fractional)
1-1/2
Neck Diameter (Decimal)
0.07
Number of Flutes
4
Included Angle
60 degrees
Neck Length (Decimal)
0.19
Neck Length (Fractional)
3/16
Shank Size (Fractional)
1/8 Inch
Neck Diameter (Fractional)
1/16
Diameter (Fractional)
1/8
Radius (Decimal)
0.005
Angle per Side
30 degrees
Cutter Width
0.04 Inch
HT - 922508
$88.30
