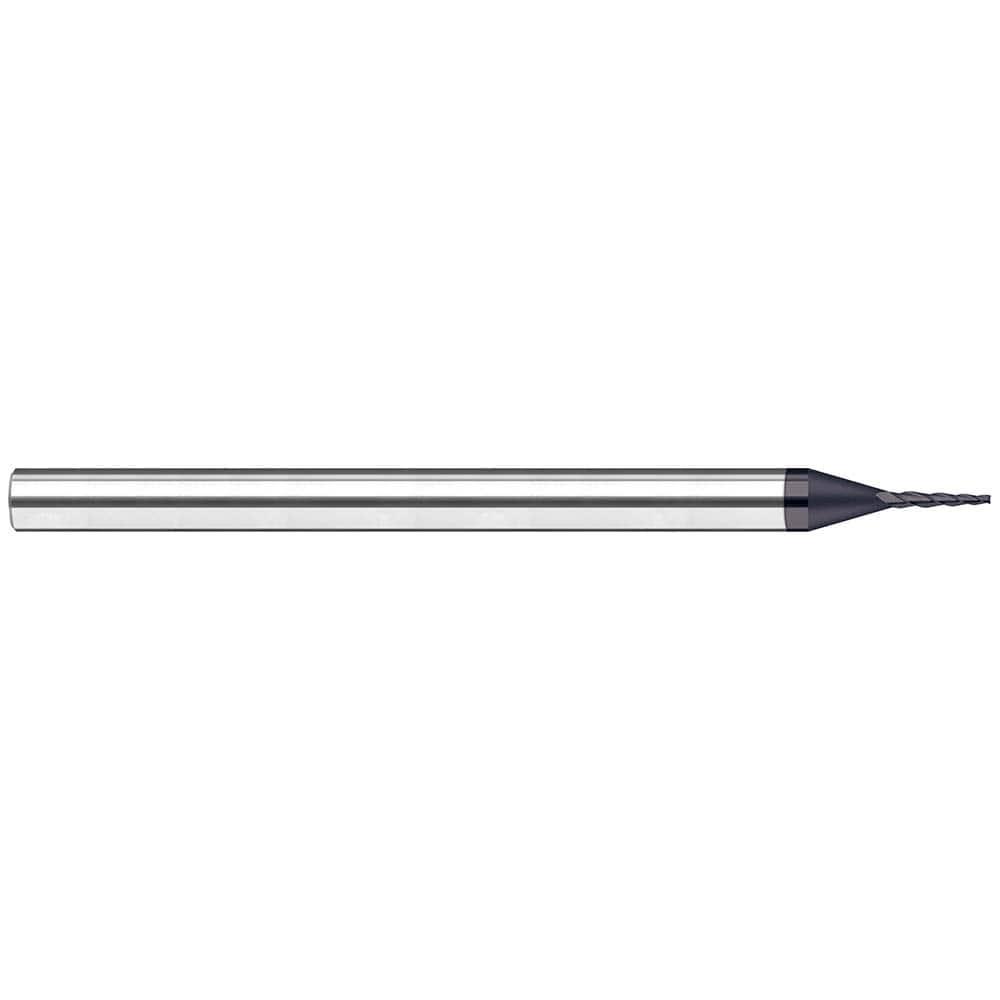

Harvey Tool Tapered End Mill: .090" Dia, 1/2" LOC, 2-1/2" OAL, 7° Per Side, 3 Flute, AlTiN Nano, 922690-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-922690-C6
$121.20

Harvey Tool tapered end mill, 3 flutes, square end, center cutting. Solid carbide, AlTiN Nano coating. Manufacturer part number 922690-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0900
Length of Cut (Decimal)
0.5000
Shank Diameter (Decimal)
0.2500
Number of Flutes
3
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN Nano
Length of Cut (Fractional)
1/2
Overall Length (Fractional)
2-1/2
Included Angle
14 degrees
Shank Diameter (Fractional)
1/4
Angle per Side
7 degrees
Size System
Decimal
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
5xD
Material
Solid Carbide
Shank Tolerance
h6
