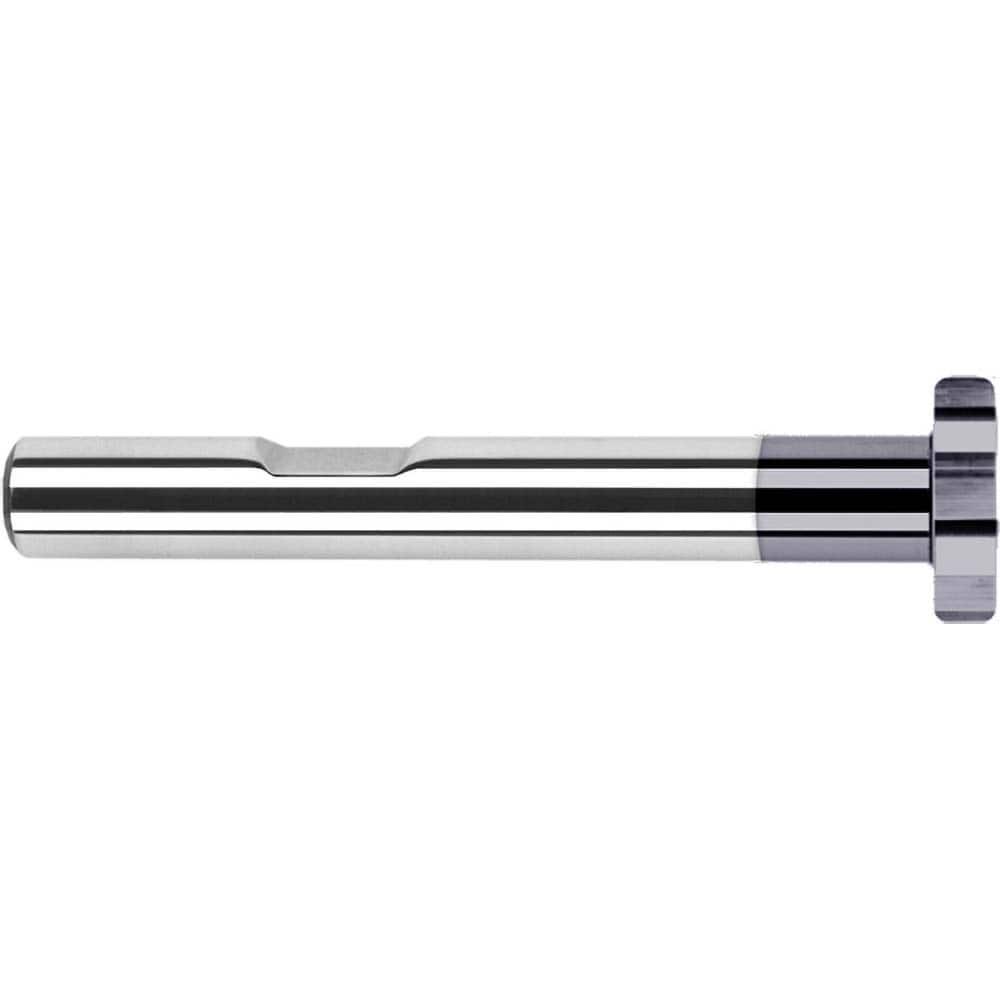

Harvey Tool Keyseat Cutter: 3/4" Dia, 1/8" Width, 10 Flute, AlTiN, 923850-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-923850-C3
$215.30

Harvey Tool keyseat cutter, 10 flutes, corner radius end, Weldon flat shank. Solid carbide, AlTiN coating. Manufacturer part number 923850-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.7500
Shank Diameter (Decimal)
0.3750
Overall Length (Decimal)
3.1250
Coating/Finish
AlTiN
Overall Length (Fractional)
3-1/8
Type
I
Corner Radius (Decimal)
0.0100
Shank Length (Decimal)
3.0000
Number of Flutes
10
Shank Diameter (Fractional)
3/8
Shank Length (Fractional)
3
Cutting Diameter (Fractional)
3/4
Cutter Width (Decimal)
0.1250
Cutter Width (Fractional)
1/8
Radial Depth of Cut (Decimal)
0.1770
Top Corner Radius
0.01
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Corner Radius
Material
Solid Carbide
Shank Type
Weldon Flat
Size System
Fractional
Harvey Tool Keyseat Cutter: 3/4" Dia, 1/8" Width, 10 Flute, AlTiN, 923850-C3
$215.30
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
