HT - 925306-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-925306-C3
$142.20

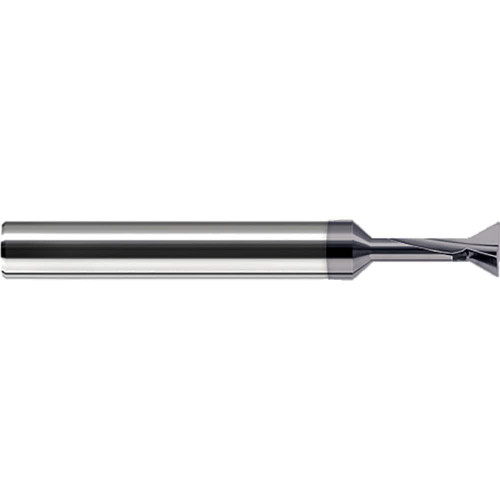

0.0930" (3/32) Cutter DIA x 0.0100" Radius x 0.0930" (3/32) Neck Length x 60° included Carbide Dovetail Cutter, 2 Flutes, AlTiN Coated

Specifications

Unit of Measure
Fractional
Diameter
3/32 Inch
Shank Size
1/8 Inch
Overall Length
1-1/2 Inch
Coating/Finish
C3
Length of Cut (Decimal)
0.05
Overall Length (Decimal)
1.50
Neck Diameter (Decimal)
0.06
Corner Radius (Decimal)
0.01
Number of Flutes
2
Diameter (Decimal)
0.10
Included Angle
60 degrees
Neck Length (Decimal)
0.10
Neck Length (Fractional)
3/32
Shank Size (Decimal)
0.13
Angle per Side
30 degrees
