HT - 925324

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-925324
$188.80

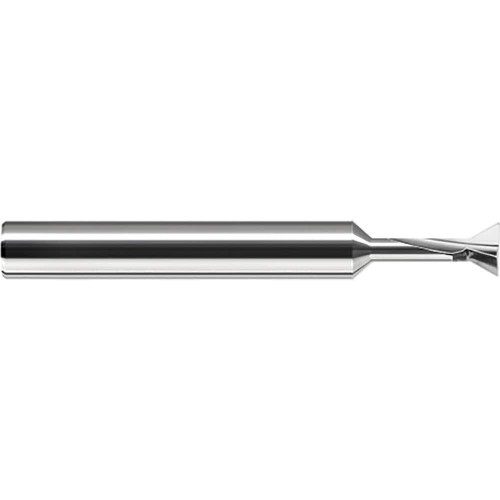

0.3750" (3/8) Cutter DIA x 0.0100" Radius x 0.2500" (1/4) Neck Length x 60° included Carbide Dovetail Cutter, 3 Flutes

Specifications

Unit of Measure
Fractional
Diameter
3/8 Inch
Shank Size
3/8 Inch
Overall Length
2-1/2 Inch
Coating/Finish
UN
Length of Cut (Decimal)
0.19
Length of Cut (Fractional)
3/16
Overall Length (Decimal)
2.50
Neck Diameter (Decimal)
0.18
Corner Radius (Decimal)
0.01
Number of Flutes
3
Diameter (Decimal)
0.38
Included Angle
60 degrees
Neck Length (Decimal)
0.25
Neck Length (Fractional)
1/4
Shank Size (Decimal)
0.38
Angle per Side
30 degrees
