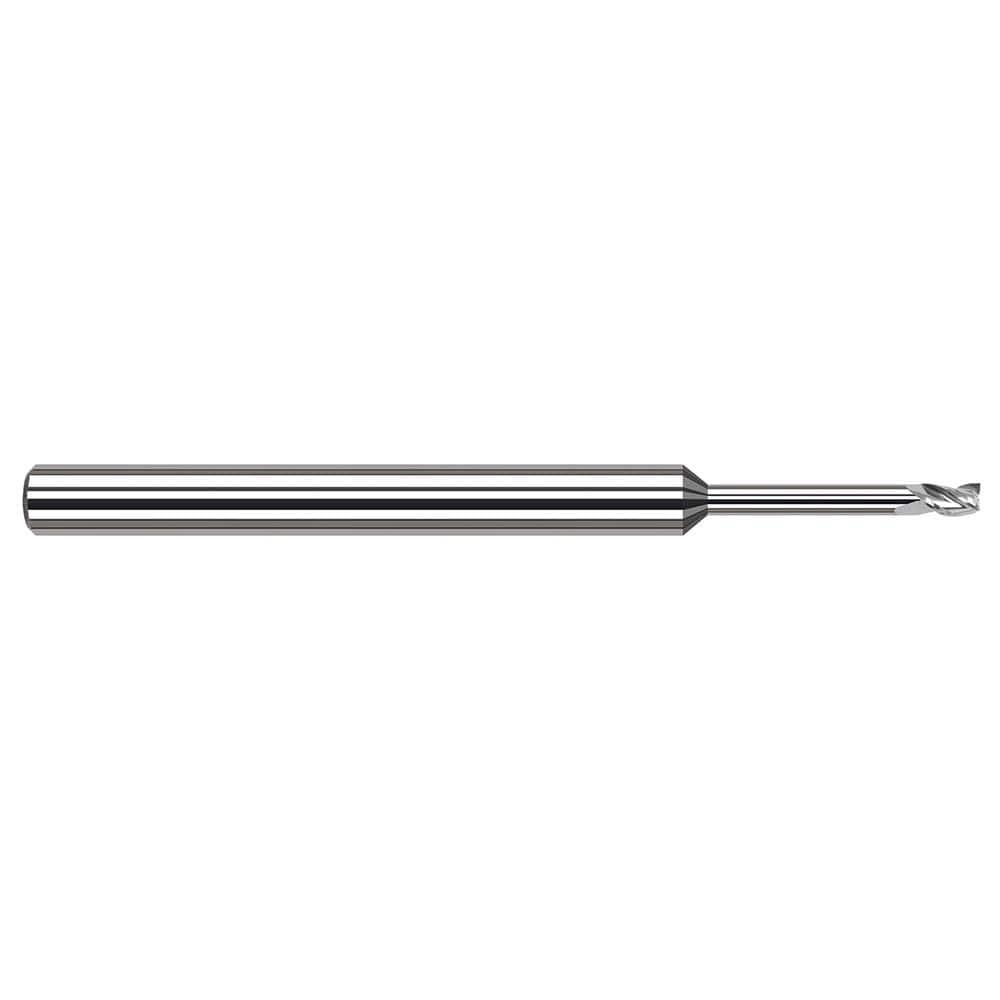

Harvey Tool Square End Mill: 1/16" Dia, 3/32" LOC, 2-1/2" OAL, 1/2" Reach, 3 Flute, Uncoated, 927162

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-927162
$70.00

Harvey Tool square end mill for non-ferrous metals, 3 flutes, variable helix, center cutting. Solid carbide, uncoated. Manufacturer part number 927162.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0620
Length of Cut (Decimal)
0.0930
Shank Diameter (Decimal)
0.1250
Number of Flutes
3
Overall Length (Decimal)
2.5000
Coating/Finish
Uncoated
Length of Cut (Fractional)
3/32
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.0605
Shank Diameter (Fractional)
1/8
Size System
Fractional
Center Cutting
Yes
Cutting Diameter (Fractional)
1/16
Reach (Decimal)
0.5000
Reach Multiple
8x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Fractional)
1/2
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Non-Ferrous
