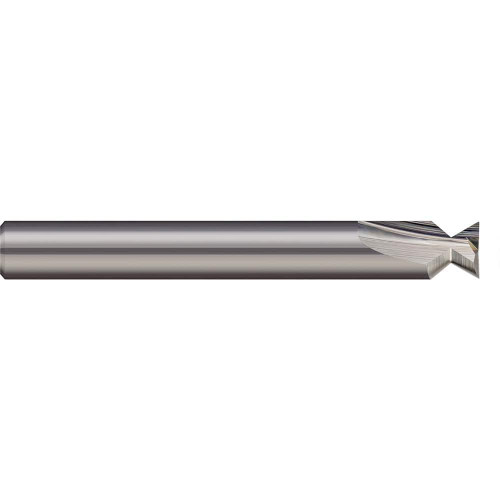

Harvey Tool Dovetail Cutter: 1/16" Dia, 1/8" LOC, 1-1/2" OAL, 4° Included, 2 Flute, Uncoated, 930004

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-930004
$155.90

Harvey Tool dovetail cutter, 2 flutes, tip radius end. Solid carbide, uncoated. Manufacturer part number 930004.

Specifications

Unit of Measure
Inch
Cutting Diameter (Fractional)
1/16
Shank Diameter (Fractional)
1/8
Overall Length (Fractional)
1-1/2
Coating/Finish
Uncoated
Length of Cut (Decimal)
0.1250
Length of Cut (Fractional)
1/8
Overall Length (Decimal)
1.5000
Neck Diameter (Decimal)
0.0540
Corner Radius (Decimal)
0.0050
Number of Flutes
2
Cutting Diameter (Decimal)
0.0620
Included Angle
4 degrees
Shank Diameter (Decimal)
0.1250
Angle per Side
2 degrees
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Tip Radius
Material
Solid Carbide
Size System
Fractional
Harvey Tool Dovetail Cutter: 1/16" Dia, 1/8" LOC, 1-1/2" OAL, 4° Included, 2 Flute, Uncoated, 930004
$155.90
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
