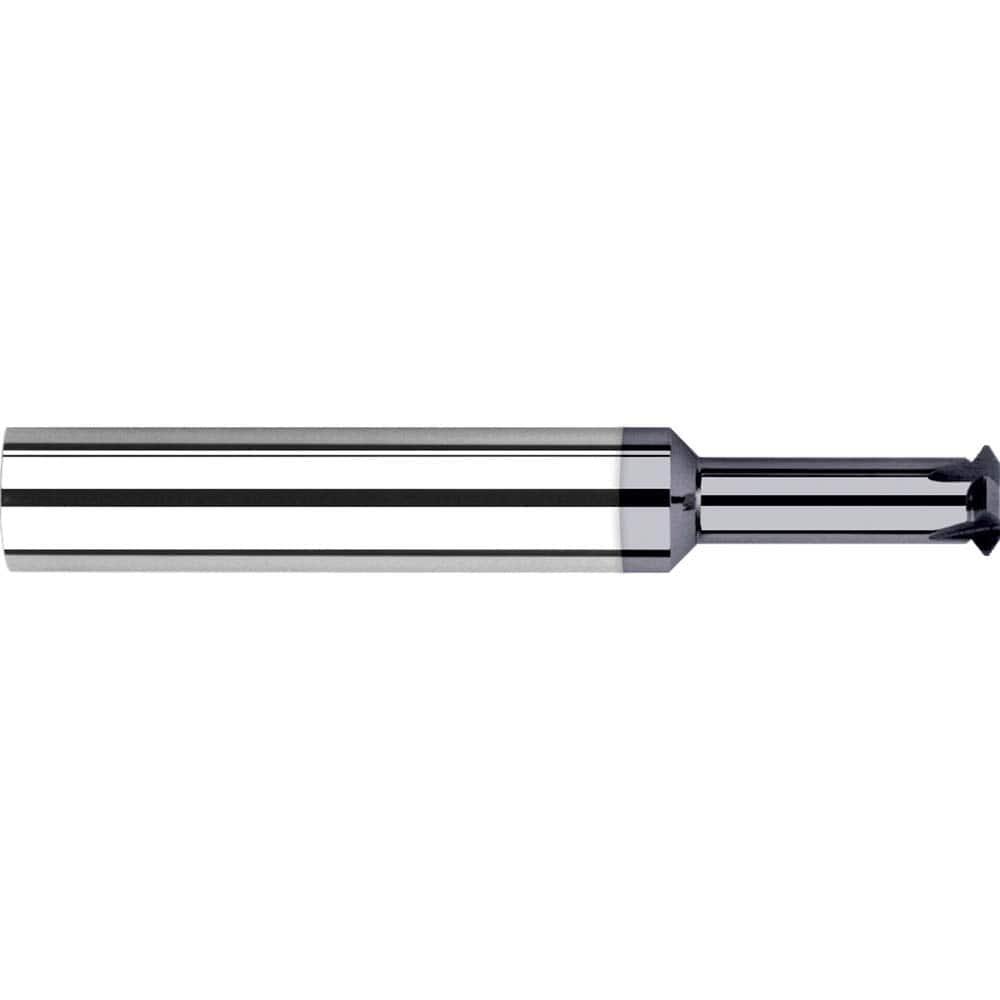

Harvey Tool Thread Mill: .135" Dia, 1/32" LOC, 2-1/2" OAL, 5 Flute, AlTiN Nano, 930340-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-930340-C6
$174.20

Harvey Tool thread mill, 5 flutes. Solid carbide, AlTiN Nano coating. Manufacturer part number 930340-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1350
Length of Cut (Decimal)
0.0310
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN Nano
Length of Cut (Fractional)
1/32
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.0860
Number of Flutes
5
Included Angle
60 degrees
Shank Diameter (Fractional)
1/4
Thread Size
#10
Angle per Side
30 degrees
Tip Flat (Decimal)
0.0028
Max Depth of Thread (Decimal)
0.8750
Max Depth of Thread (Fractional)
7/8
Material
Solid Carbide
Maximum Workpiece Hardness
68 HRC
Shank Tolerance
h6
Harvey Tool Thread Mill: .135" Dia, 1/32" LOC, 2-1/2" OAL, 5 Flute, AlTiN Nano, 930340-C6
$174.20
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
