HT - 930355-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-930355-C6
$182.30

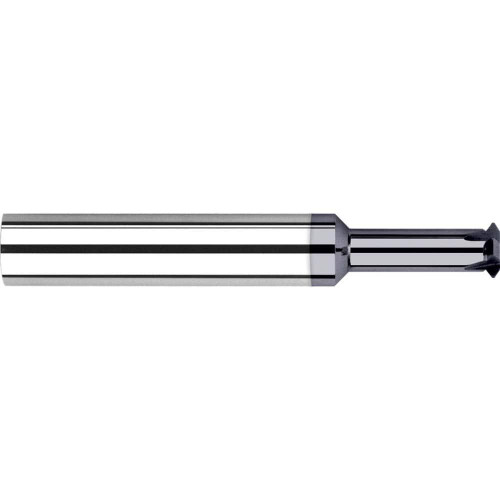

0.2400" Cutter DIA x 1.2500" (1-1/4) Reach Carbide Single Form #5/16 Thread Milling Cutter for Hardened Steels, 5 Flutes, AlTiN Nano Coated

Specifications

Unit of Measure
Imperial
Diameter
0.24 Inch
Length of Cut
0.05 Inch
Shank Size
0.25 Inch
Overall Length
2.50 Inch
Coating/Finish
C6
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.18
Number of Flutes
5
Included Angle
60 degrees
Shank Size (Fractional)
1/4 Inch
Size
5/16
Angle per Side
30 degrees
Tip Flat (Decimal)
0.0036
Max Depth of Thread (Decimal)
1.25
Max Depth of Thread (Fractional)
1-1/4
HT - 930355-C6
$182.30
