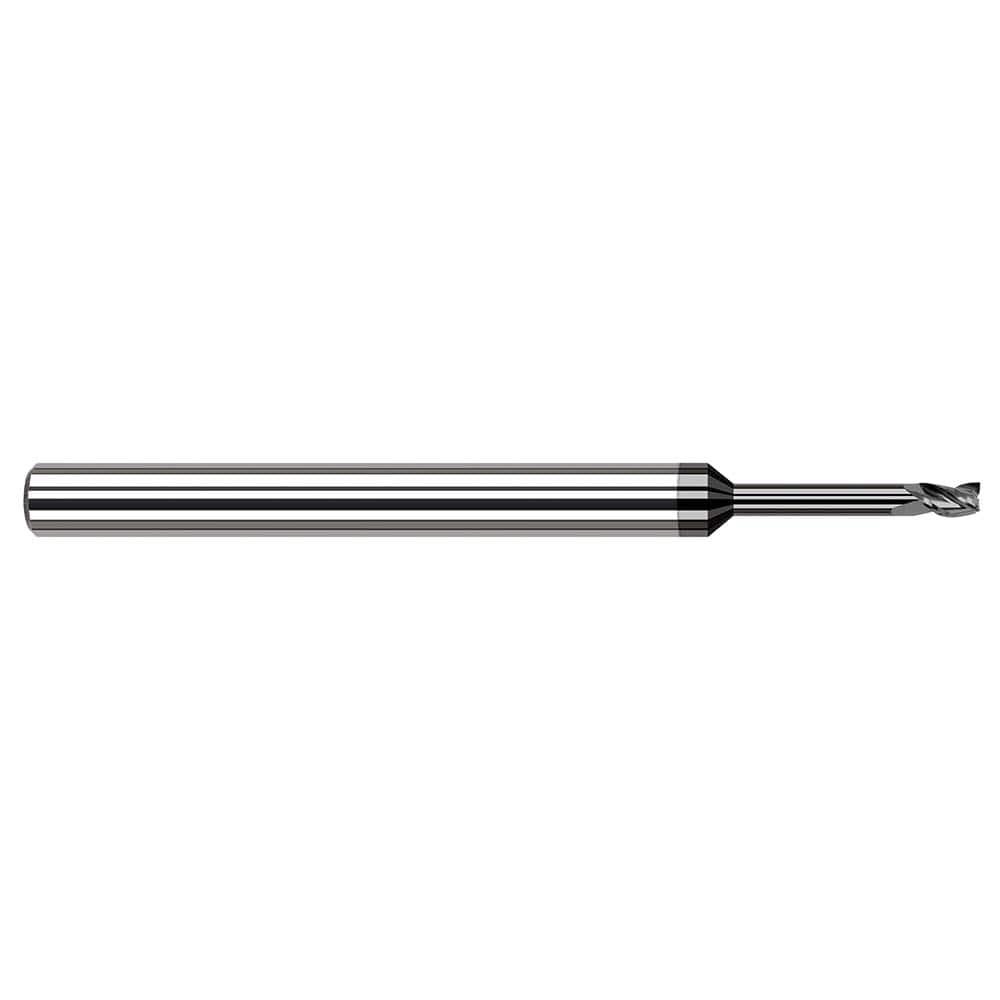

Harvey Tool Square End Mill: 1/16" Dia, 3/32" LOC, 2-1/2" OAL, 5/16" Reach, 3 Flute, Amorphous Diamond, 930862-C4

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-930862-C4
$89.20

Harvey Tool square end mill for non-ferrous metals, 3 flutes, variable helix, center cutting. Solid carbide, Amorphous Diamond coating. Manufacturer part number 930862-C4.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0620
Length of Cut (Decimal)
0.0930
Shank Diameter (Decimal)
0.1250
Number of Flutes
3
Overall Length (Decimal)
2.5000
Coating/Finish
Amorphous Diamond
Length of Cut (Fractional)
3/32
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.0605
Shank Diameter (Fractional)
1/8
Size System
Fractional
Center Cutting
Yes
Cutting Diameter (Fractional)
1/16
Reach (Decimal)
0.3120
Reach Multiple
5x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Fractional)
5/16
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Non-Ferrous
Harvey Tool Square End Mill: 1/16" Dia, 3/32" LOC, 2-1/2" OAL, 5/16" Reach, 3 Flute, Amorphous Diamond, 930862-C4
$89.20
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
