HT - 931920

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-931920
$140.90

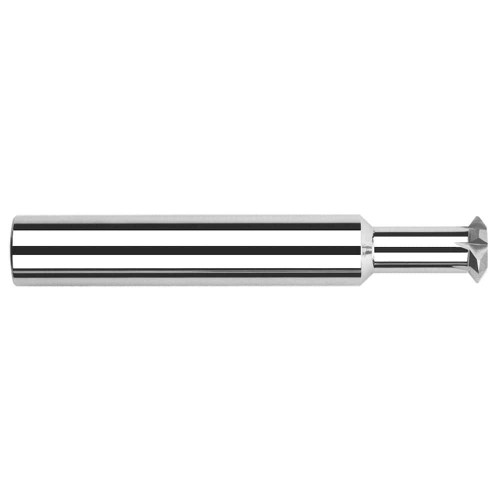

0.3125" (5/16) Cutter DIA x 0.0100" Radius x 0.1340" Width x 1.2500" (1-1/4) Neck Length Carbide Double Angle Shank Cutter, 6 Flutes

Specifications

Unit of Measure
Imperial
Diameter
0.32 Inch
Shank Size
0.32 Inch
Overall Length
3 Inch
Coating/Finish
UN
Neck Diameter (Decimal)
0.19
Number of Flutes
6
Included Angle
90 degrees
Neck Length (Decimal)
1.25
Neck Length (Fractional)
1-1/4
Shank Size (Fractional)
5/16 Inch
Neck Diameter (Fractional)
3/16
Diameter (Fractional)
5/16
Radius (Decimal)
0.01
Angle per Side
45 degrees
Cutter Width
0.13 Inch
HT - 931920
$140.90
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
