HT - 932930

Name: HT - 932930
Brand: Harvey Tool
SKU: HAR-932930
Price: 116.3 USD
Availability: InStock

Harvey Tool

No reviews yet Write a Review

$116.30

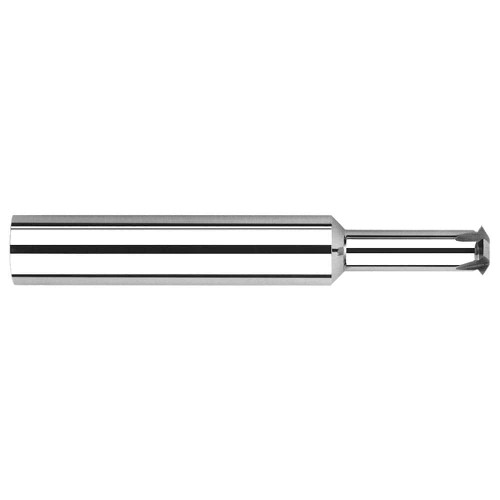

0.1200" Cutter DIA x 0.2180" (7/32) Reach Carbide Single Form #8 Thread Milling Cutter, 4 Flutes

Unit of Measure

Imperial

Diameter

0.12 Inch

Length of Cut

0.03 Inch

Shank Size

0.25 Inch

Overall Length

2.50 Inch

Coating/Finish

Overall Length (Fractional)

2-1/2

Neck Diameter (Decimal)

0.07

Number of Flutes

Included Angle

60 degrees

Shank Size (Fractional)

1/4 Inch

Size

Angle per Side

30 degrees

Max Depth of Thread (Decimal)

0.22

Max Depth of Thread (Fractional)

7/32
