HT - 934716

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-934716
$119.30

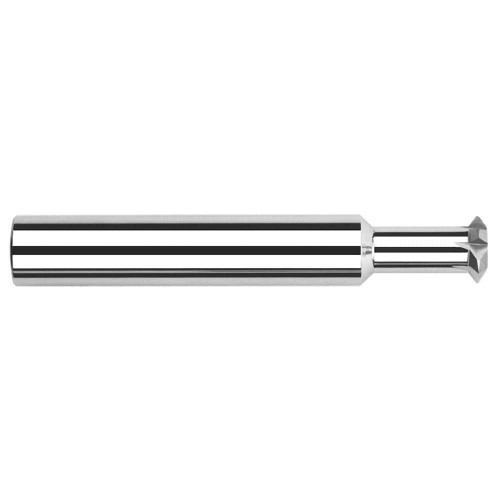

0.2500" (1/4) Cutter DIA x 0.0100" Radius x 0.0840" Width x 0.3120" (5/16) Neck Length Carbide Double Angle Shank Cutter, 4 Flutes

Specifications

Unit of Measure
Imperial
Diameter
0.25 Inch
Shank Size
0.25 Inch
Overall Length
2 Inch
Coating/Finish
UN
Neck Diameter (Decimal)
0.13
Number of Flutes
4
Included Angle
60 degrees
Neck Length (Decimal)
0.32
Neck Length (Fractional)
5/16
Shank Size (Fractional)
1/4 Inch
Neck Diameter (Fractional)
1/8
Diameter (Fractional)
1/4
Radius (Decimal)
0.01
Angle per Side
30 degrees
Cutter Width
0.08 Inch
HT - 934716
$119.30
