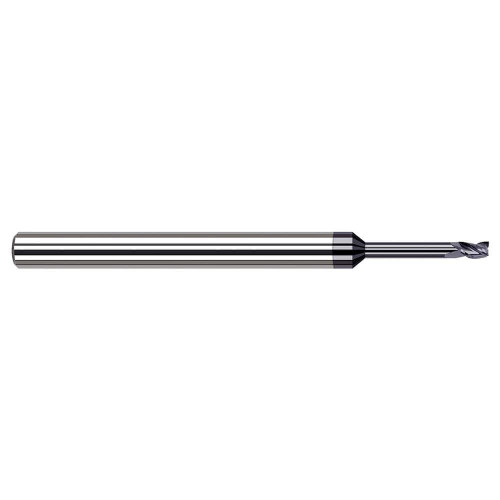

Harvey Tool Square End Mill: .030" Dia, .045" LOC, 2-1/2" OAL, 7/32" Reach, 3 Flute, AlTiN, 934830-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-934830-C3
$62.20

Harvey Tool square end mill, 3 flutes, center cutting, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 934830-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0300
Length of Cut (Decimal)
0.0450
Shank Diameter (Decimal)
0.1250
Number of Flutes
3
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.0290
Center Cutting
Yes
Chip Breaker
No
Shank Diameter (Fractional)
1/8
Size System
Decimal
Double Ended
No
Coolant Option
External Coolant
Reach (Decimal)
0.2180
Reach Multiple
7x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Fractional)
7/32
Harvey Tool Square End Mill: .030" Dia, .045" LOC, 2-1/2" OAL, 7/32" Reach, 3 Flute, AlTiN, 934830-C3
$62.20
