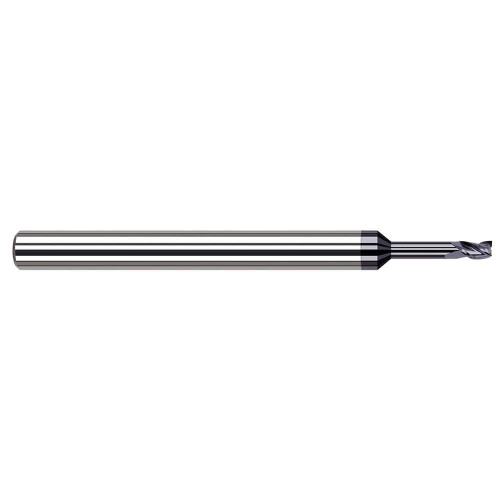

Harvey Tool Square End Mill: .020" Dia, .030" LOC, 2-1/2" OAL, .100" Reach, 3 Flute, AlTiN, 936120-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-936120-C3
$85.20

Harvey Tool square end mill for steel and stainless steel, 3 flutes, variable helix, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 936120-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0200
Length of Cut (Decimal)
0.0300
Shank Diameter (Decimal)
0.1250
Number of Flutes
3
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.0192
Shank Diameter (Fractional)
1/8
Size System
Decimal
Cutting Diameter (Metric)
0.50
Center Cutting
Yes
Reach Multiple
5x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Decimal)
0.1000
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Steel, Stainless Steel
Harvey Tool Square End Mill: .020" Dia, .030" LOC, 2-1/2" OAL, .100" Reach, 3 Flute, AlTiN, 936120-C3
$85.20
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
