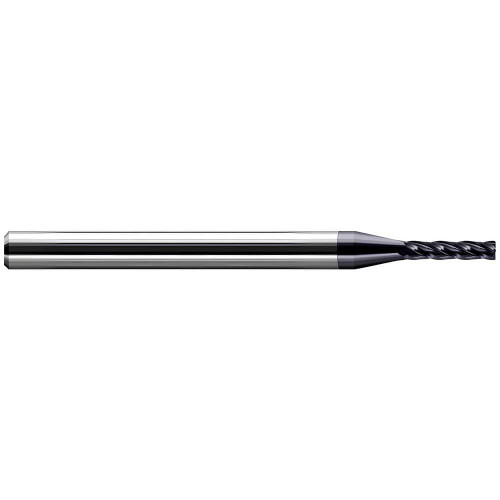

Harvey Tool Corner Radius End Mill: 1/16" Dia, 1/2" LOC, 2-1/2" OAL, .010" Corner Radius, 4 Flute, AlTiN, 938062-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-938062-C3
$59.10

Harvey Tool corner radius end mill, 4 flutes, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 938062-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0620
Length of Cut (Decimal)
0.5000
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Length of Cut (Fractional)
1/2
Overall Length (Fractional)
2-1/2
Corner Radius (Decimal)
0.0100
Number of Flutes
4
Shank Diameter (Fractional)
1/8
Cutting Diameter (Fractional)
1/16
Size System
Fractional
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Corner Radius
LxD Ratio
8xD
Material
Solid Carbide
Harvey Tool Corner Radius End Mill: 1/16" Dia, 1/2" LOC, 2-1/2" OAL, .010" Corner Radius, 4 Flute, AlTiN, 938062-C3
$59.10
