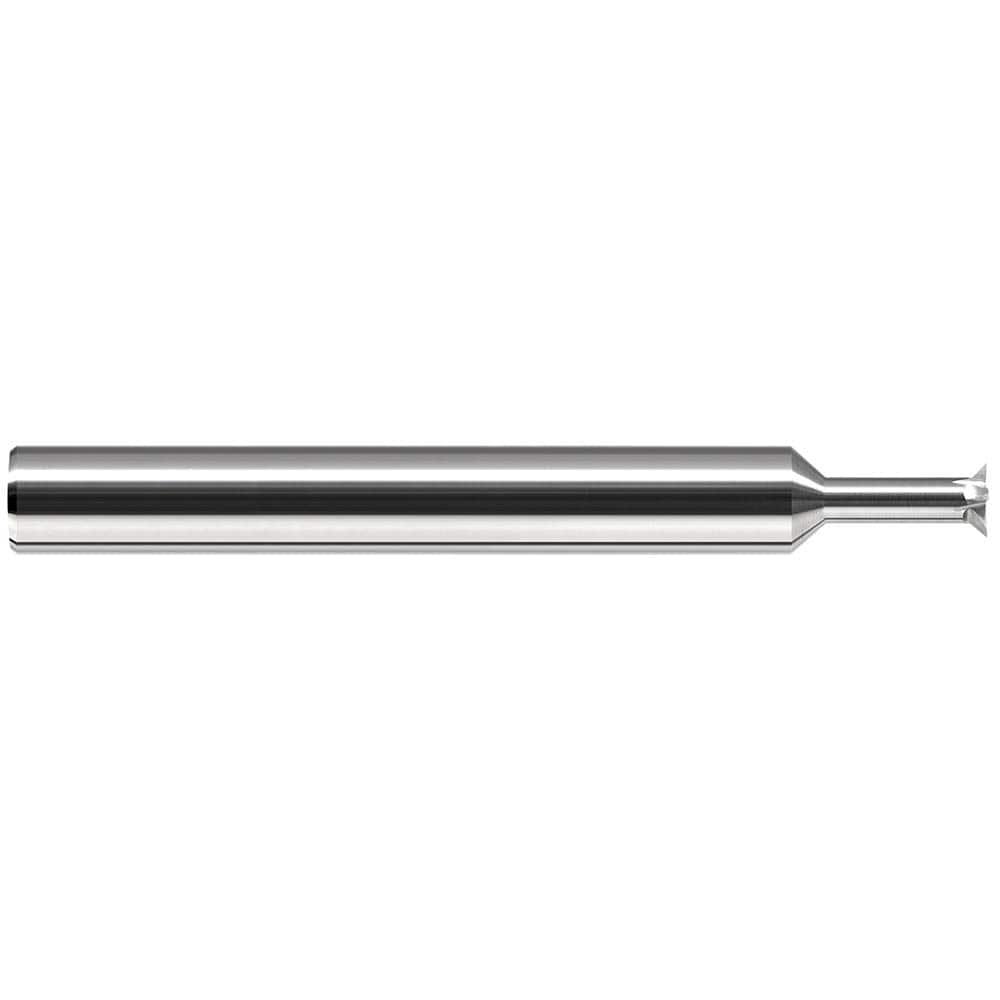

Harvey Tool Chamfer Mill: 3/16" Shank x .024" LOC x 2" OAL, 90° Included, 5 Flute, Uncoated, 938220

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-938220
$117.20

Harvey Tool chamfer mill, 5 flutes, back chamfer end. Solid carbide, uncoated. Manufacturer part number 938220.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
0.0240
Shank Diameter (Decimal)
0.1875
Overall Length (Fractional)
2
Coating/Finish
Uncoated
Overall Length (Decimal)
2.0000
Neck Diameter (Decimal)
0.0810
Number of Flutes
5
Included Angle
90 degrees
Neck Length (Fractional)
13/32
Shank Diameter (Fractional)
3/16
Angle per Side
45 degrees
Reach Multiple
5x
Neck Length (Decimal)
0.4060
Head Diameter (Decimal)
0.1350
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Back Chamfer
Material
Solid Carbide
Harvey Tool Chamfer Mill: 3/16" Shank x .024" LOC x 2" OAL, 90° Included, 5 Flute, Uncoated, 938220
$117.20
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
