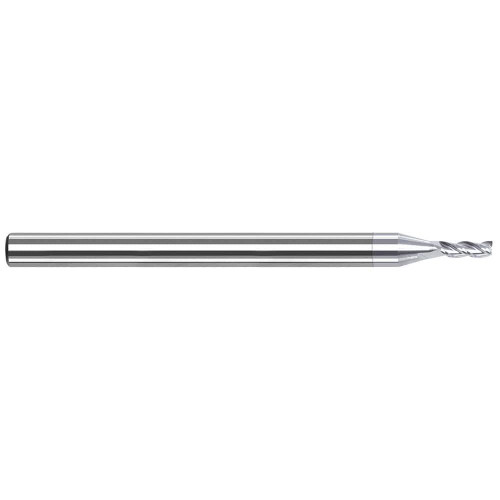

Harvey Tool Square End Mill: 5/64" Dia, 15/64" LOC, 1-1/2" OAL, 3 Flute, TiB2, 942278-C8

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-942278-C8
$48.50

Harvey Tool square end mill for non-ferrous metals, 3 flutes, variable helix, center cutting. Solid carbide, TiB2 coating. Manufacturer part number 942278-C8.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0780
Length of Cut (Decimal)
0.2340
Shank Diameter (Decimal)
0.1250
Number of Flutes
3
Overall Length (Decimal)
1.5000
Coating/Finish
TiB2
Length of Cut (Fractional)
15/64
Overall Length (Fractional)
1-1/2
Shank Diameter (Fractional)
1/8
Cutting Diameter (Fractional)
5/64
Size System
Fractional
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
3xD
Material
Solid Carbide
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Non-Ferrous
Harvey Tool Square End Mill: 5/64" Dia, 15/64" LOC, 1-1/2" OAL, 3 Flute, TiB2, 942278-C8
$48.50
