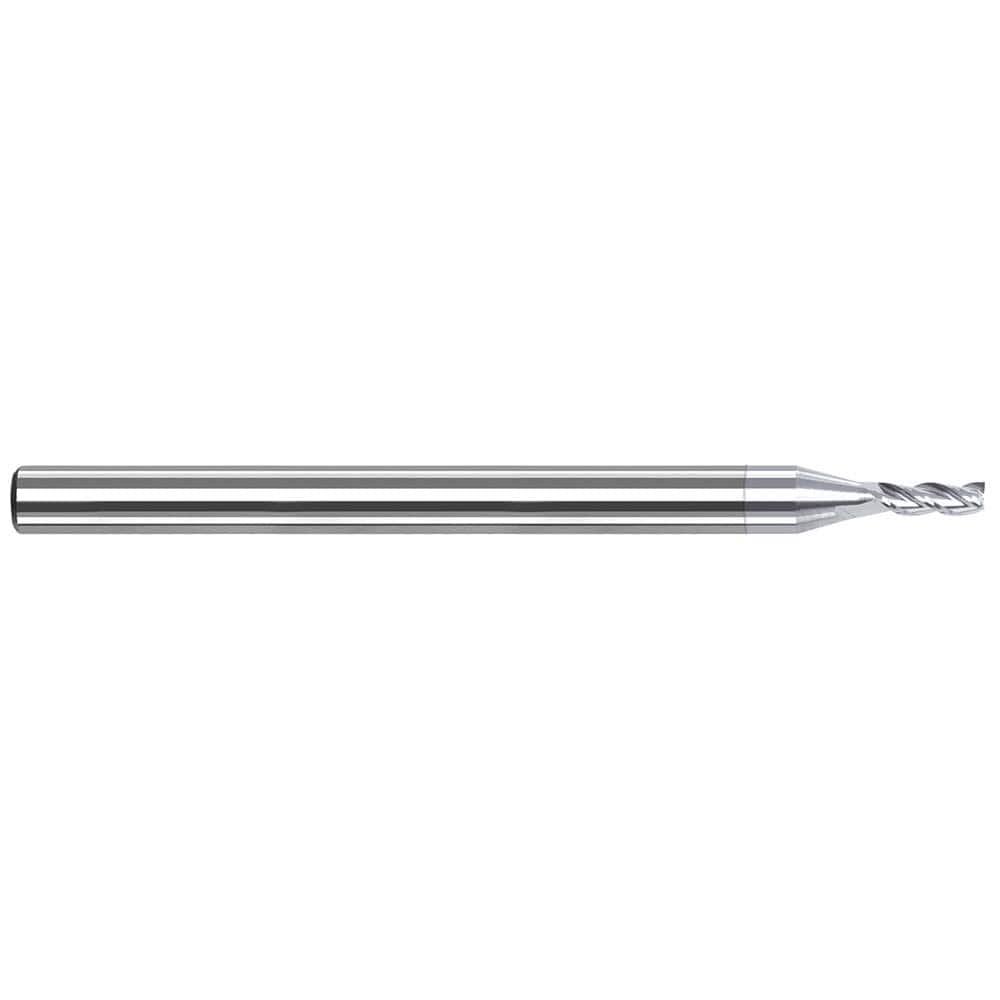

Harvey Tool Square End Mill: .090" Dia, .270" LOC, 1-1/2" OAL, 3 Flute, Amorphous Diamond, 942290-C4

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-942290-C4
$59.00

Harvey Tool square end mill for non-ferrous metals, 3 flutes, variable helix, center cutting. Solid carbide, Amorphous Diamond coating. Manufacturer part number 942290-C4.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0900
Length of Cut (Decimal)
0.2700
Shank Diameter (Decimal)
0.1250
Number of Flutes
3
Overall Length (Decimal)
1.5000
Coating/Finish
Amorphous Diamond
Overall Length (Fractional)
1-1/2
Shank Diameter (Fractional)
1/8
Size System
Decimal
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
3xD
Material
Solid Carbide
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Non-Ferrous
Harvey Tool Square End Mill: .090" Dia, .270" LOC, 1-1/2" OAL, 3 Flute, Amorphous Diamond, 942290-C4
$59.00
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
