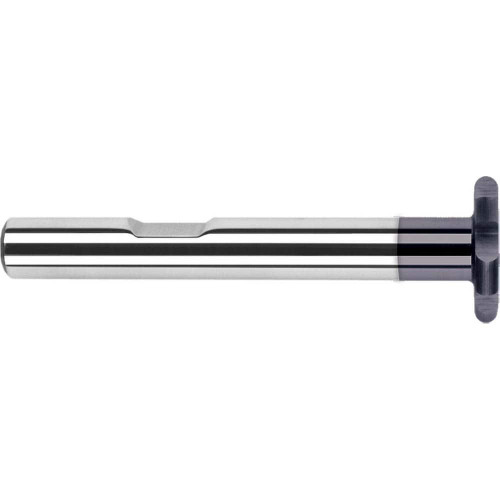

Harvey Tool Keyseat Cutter: 1" Dia, .079" Width, 6 Flute, AlTiN, 94261M-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-94261M-C3
$275.40

Harvey Tool keyseat cutter, 6 flutes, ball end, Weldon flat shank. Solid carbide, AlTiN coating. Manufacturer part number 94261M-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
1.0000
Shank Diameter (Decimal)
0.5000
Overall Length (Decimal)
3.0790
Coating/Finish
AlTiN
Type
I
Shank Length (Decimal)
3.0000
Number of Flutes
6
Shank Diameter (Fractional)
1/2
Shank Length (Fractional)
3
Radius (Decimal)
0.0394
Cutter Width (Decimal)
0.0790
Radial Depth of Cut (Decimal)
0.2400
Cutter Width (Metric)
2.00
Cutting Diameter (Fractional)
1
Cutting Diameter Tolerance (Decimal)
+0.0100/-0.0000
End Type
Ball
Material
Solid Carbide
Radius (Metric)
1.00
Shank Type
Weldon Flat
Size System
Fractional
Harvey Tool Keyseat Cutter: 1" Dia, .079" Width, 6 Flute, AlTiN, 94261M-C3
$275.40
