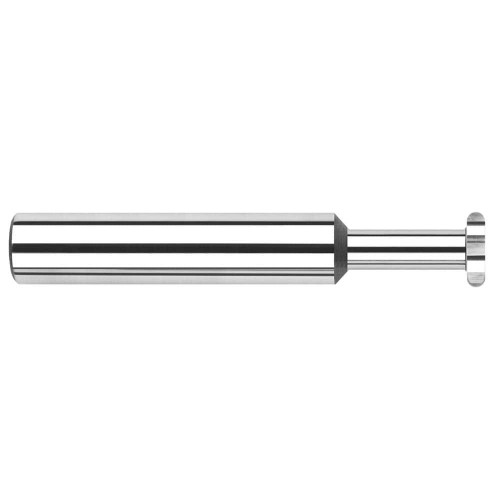

Harvey Tool Keyseat Cutter: 5/16" Dia, 1/32" Width, 6 Flute, Uncoated, 944415

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-944415
$150.30

Harvey Tool keyseat cutter, 6 flutes, ball end. Solid carbide, uncoated. Manufacturer part number 944415.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.3125
Shank Diameter (Decimal)
0.3125
Overall Length (Decimal)
2.5000
Coating/Finish
Uncoated
Overall Length (Fractional)
2-1/2
Type
I
Neck Diameter (Decimal)
0.1560
Number of Flutes
6
Neck Length (Decimal)
0.5000
Neck Length (Fractional)
1/2
Shank Diameter (Fractional)
5/16
Neck Diameter (Fractional)
5/32
Cutting Diameter (Fractional)
5/16
Radius (Decimal)
0.0156
Reach Multiple
1.5x
Radius (Fractional)
1/64
Cutter Width (Decimal)
0.0313
Cutter Width (Fractional)
1/32
Radial Depth of Cut (Decimal)
0.0680
End Type
Ball
Material
Solid Carbide
Size System
Fractional
Harvey Tool Keyseat Cutter: 5/16" Dia, 1/32" Width, 6 Flute, Uncoated, 944415
$150.30
