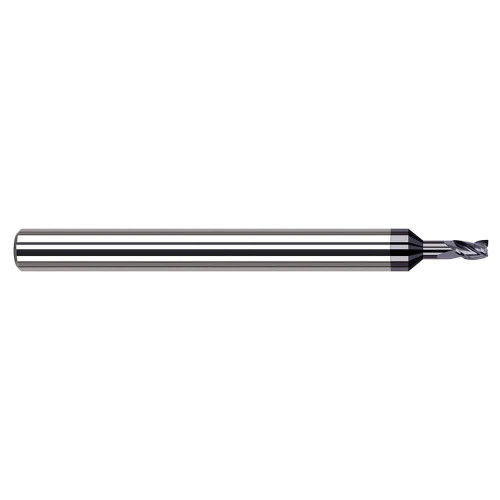

Harvey Tool Square End Mill: 1/32" Dia, 3/64" LOC, 1-1/2" OAL, 3/32" Reach, 3 Flute, AlTiN, 945331-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-945331-C3
$75.90

Harvey Tool square end mill for steel and stainless steel, 3 flutes, variable helix, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 945331-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0310
Length of Cut (Decimal)
0.0470
Shank Diameter (Decimal)
0.1250
Number of Flutes
3
Overall Length (Decimal)
1.5000
Coating/Finish
AlTiN
Length of Cut (Fractional)
3/64
Overall Length (Fractional)
1-1/2
Neck Diameter (Decimal)
0.0300
Shank Diameter (Fractional)
1/8
Size System
Fractional
Center Cutting
Yes
Cutting Diameter (Fractional)
1/32
Reach (Decimal)
0.0930
Reach Multiple
3x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Fractional)
3/32
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Steel, Stainless Steel
Harvey Tool Square End Mill: 1/32" Dia, 3/64" LOC, 1-1/2" OAL, 3/32" Reach, 3 Flute, AlTiN, 945331-C3
$75.90
