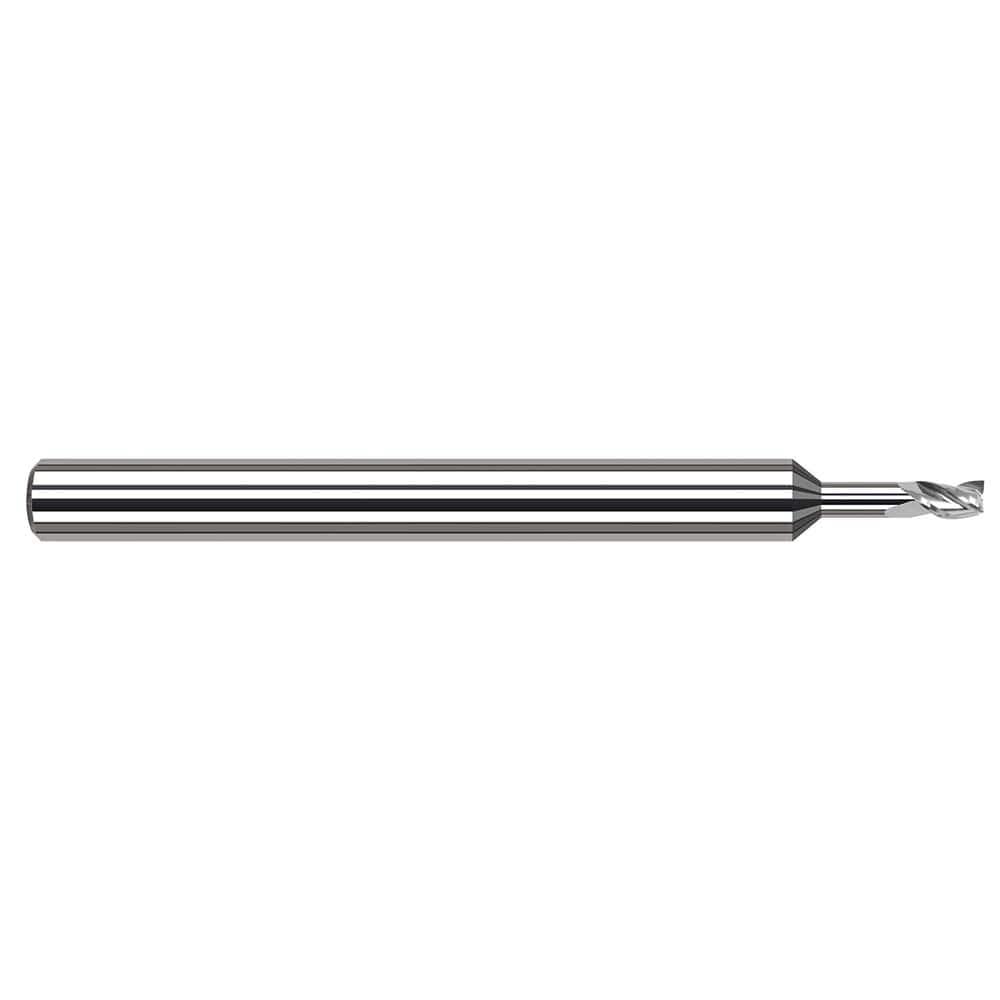

Harvey Tool Square End Mill: 1/32" Dia, .046" LOC, 2-1/2" OAL, 1/8" Reach, 3 Flute, Amorphous Diamond, 945531-C4

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-945531-C4
$74.70

Harvey Tool square end mill, 3 flutes, center cutting. Solid carbide, Amorphous Diamond coating. Manufacturer part number 945531-C4.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0310
Length of Cut (Decimal)
0.0460
Shank Diameter (Decimal)
0.1250
Number of Flutes
3
Overall Length (Decimal)
2.5000
Coating/Finish
Amorphous Diamond
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.0300
Shank Diameter (Fractional)
1/8
Size System
Fractional
Center Cutting
Yes
Cutting Diameter (Fractional)
1/32
Reach (Decimal)
0.1250
Reach Multiple
4x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Fractional)
1/8
Harvey Tool Square End Mill: 1/32" Dia, .046" LOC, 2-1/2" OAL, 1/8" Reach, 3 Flute, Amorphous Diamond, 945531-C4
$74.70
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
