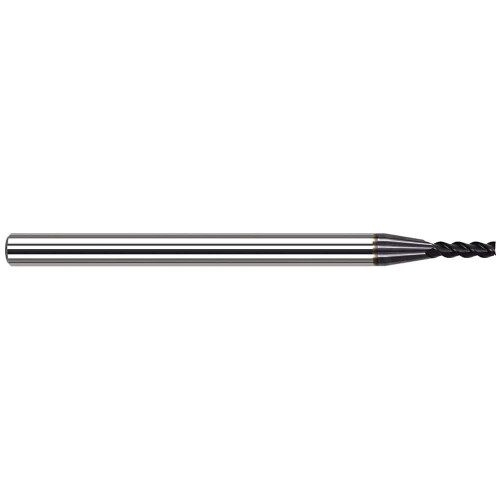

Harvey Tool Square End Mill: 3/64" Dia, .141" LOC, 1-1/2" OAL, 3 Flute, AlTiN, 945747-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-945747-C3
$48.30

Harvey Tool square end mill for steel and stainless steel, 3 flutes, variable helix, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 945747-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0470
Length of Cut (Decimal)
0.1410
Shank Diameter (Decimal)
0.1250
Number of Flutes
3
Overall Length (Decimal)
1.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
1-1/2
Shank Diameter (Fractional)
1/8
Cutting Diameter (Fractional)
3/64
Size System
Fractional
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
3xD
Material
Solid Carbide
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Steel, Stainless Steel
Harvey Tool Square End Mill: 3/64" Dia, .141" LOC, 1-1/2" OAL, 3 Flute, AlTiN, 945747-C3
$48.30
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
