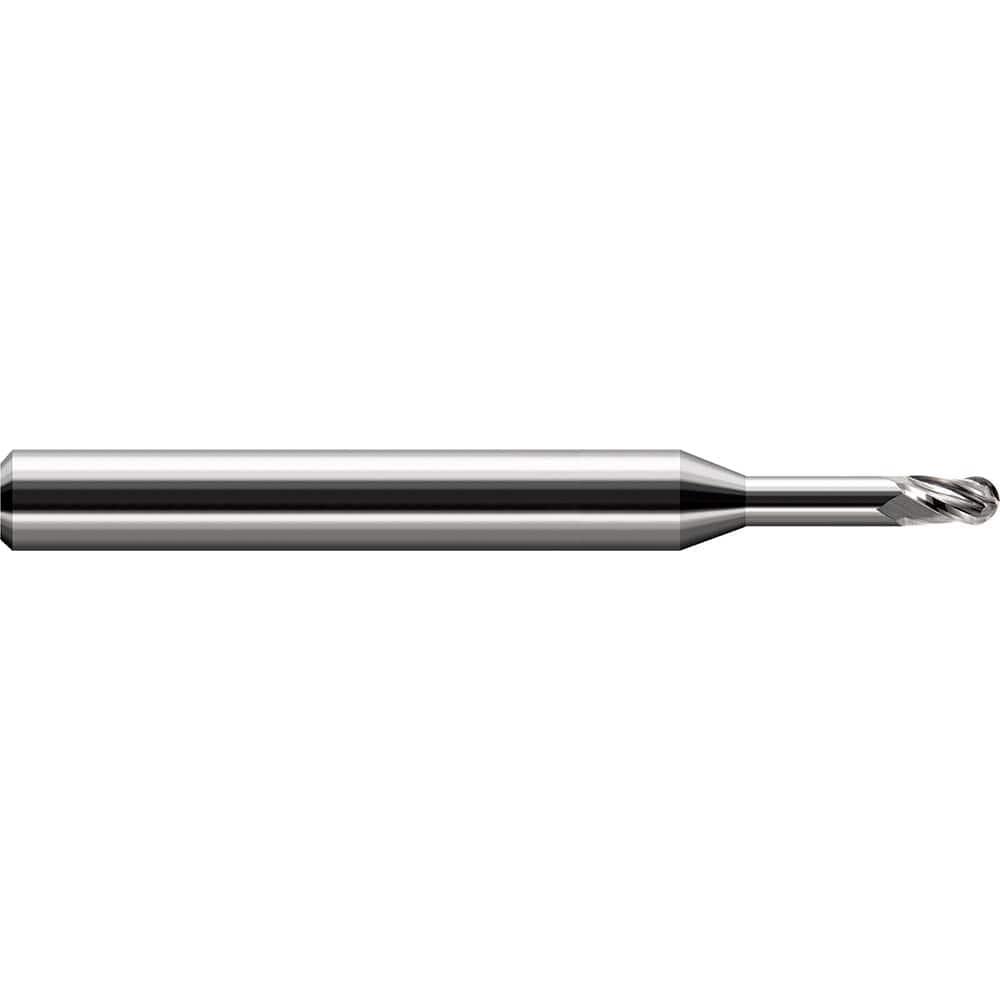

Harvey Tool Ball End Mill: 1/4" Dia, 3/8" LOC, 4" OAL, 1-1/4" Reach, 3 Flute, Uncoated, 947116

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-947116
$91.30

Harvey Tool ball end mill for non-ferrous metals, 3 flutes, variable helix, center cutting. Solid carbide, uncoated. Manufacturer part number 947116.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.2500
Length of Cut (Decimal)
0.3750
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
4.0000
Coating/Finish
Uncoated
Length of Cut (Fractional)
3/8
Neck Diameter (Decimal)
0.2460
Number of Flutes
3
Shank Diameter (Fractional)
1/4
Overall Length (Fractional)
4
Size System
Fractional
Cutting Diameter (Fractional)
1/4
Center Cutting
Yes
Reach Multiple
5x
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Ball
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Decimal)
1.2500
Reach (Fractional)
1-1/4
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Non-Ferrous
Harvey Tool Ball End Mill: 1/4" Dia, 3/8" LOC, 4" OAL, 1-1/4" Reach, 3 Flute, Uncoated, 947116
$91.30
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
