HT - 947588-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-947588-C3
$92.00

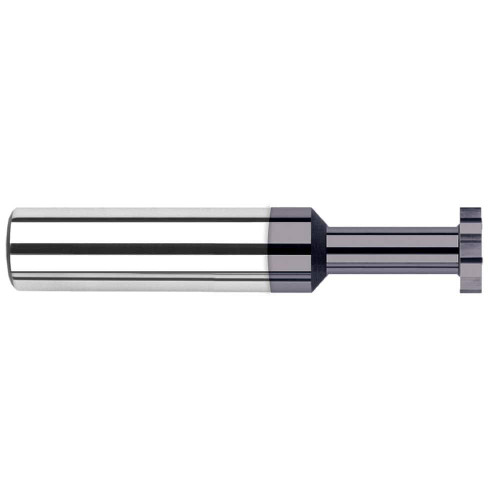

0.2362" (6 mm) Cutter DIA x 0.1180" Width x 0.3540" Neck Length CarbideSquare Standard Keyseat Cutter, 6 Flutes, AlTiN Coated

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.2362
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Neck Diameter (Metric)
3.00
Type
I
Neck Diameter (Decimal)
0.1180
Number of Flutes
6
Neck Length (Decimal)
0.3540
Shank Diameter (Fractional)
1/4
Cutting Diameter (Metric)
6.00
Reach Multiple
1.5x
Cutter Width (Decimal)
0.1180
Radial Depth of Cut (Decimal)
0.0490
Cutter Width (Metric)
3.00
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Square
Material
Solid Carbide
Neck Length (Metric)
9.00
Size System
Decimal
HT - 947588-C3
$92.00
