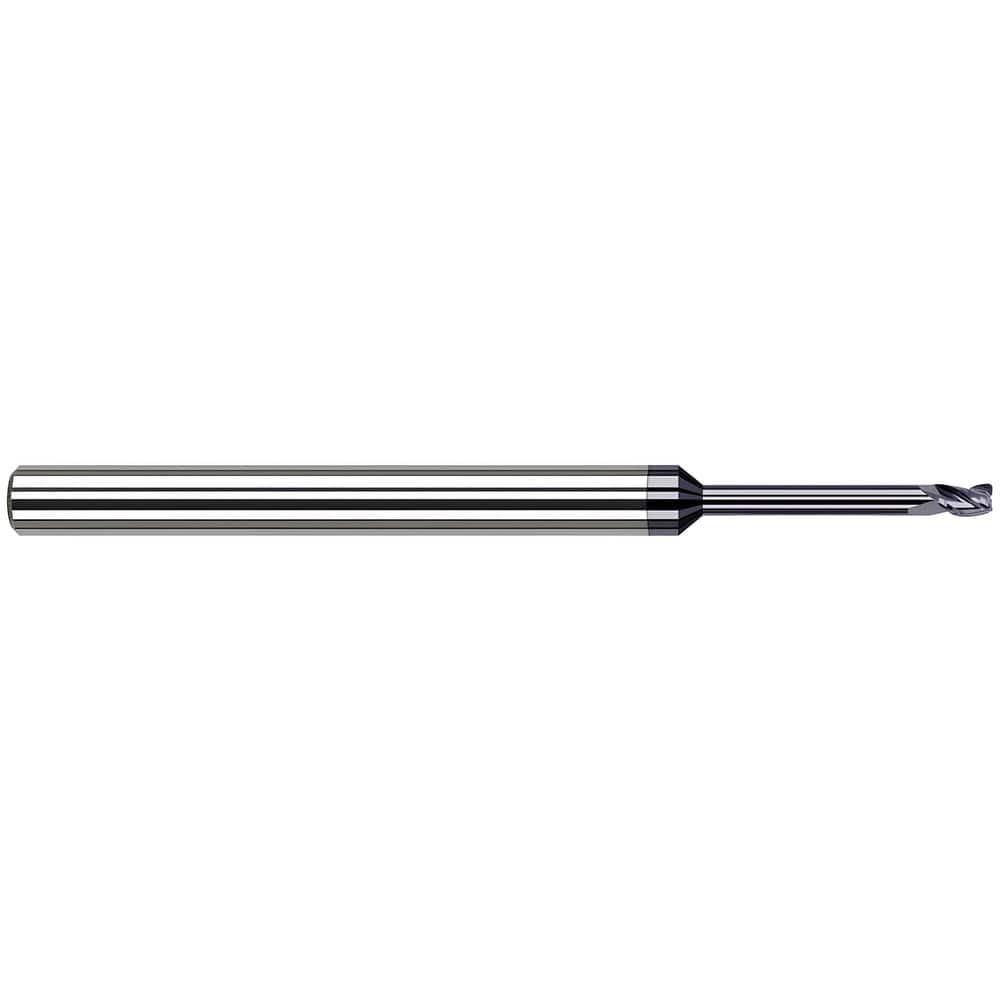

Harvey Tool Corner Radius End Mill: 1/32" Dia, 3/64" LOC, 1-1/2" OAL, .005" Corner Radius, 3/32" Reach, 3 Flute, AlTiN Nano, 947631-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-947631-C6
$80.10

Harvey Tool corner radius end mill for high-temp alloys, 3 flutes, variable helix, center cutting. Solid carbide, AlTiN Nano coating. Manufacturer part number 947631-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0310
Length of Cut (Decimal)
0.0470
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
AlTiN Nano
Length of Cut (Fractional)
3/64
Overall Length (Fractional)
1-1/2
Corner Radius (Decimal)
0.0050
Neck Diameter (Decimal)
0.0300
Number of Flutes
3
Shank Diameter (Fractional)
1/8
Size System
Fractional
Center Cutting
Yes
Cutting Diameter (Fractional)
1/32
Reach (Decimal)
0.0930
Reach Multiple
3x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Corner Radius
LxD Ratio
1.5xD
Material
Solid Carbide
Maximum Workpiece Hardness
45 HRC
Reach (Fractional)
3/32
Secondary Workpiece Material
Steel, Stainless Steel
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
High-Temp Alloy
Harvey Tool Corner Radius End Mill: 1/32" Dia, 3/64" LOC, 1-1/2" OAL, .005" Corner Radius, 3/32" Reach, 3 Flute, AlTiN Nano, 947631-C6
$80.10
