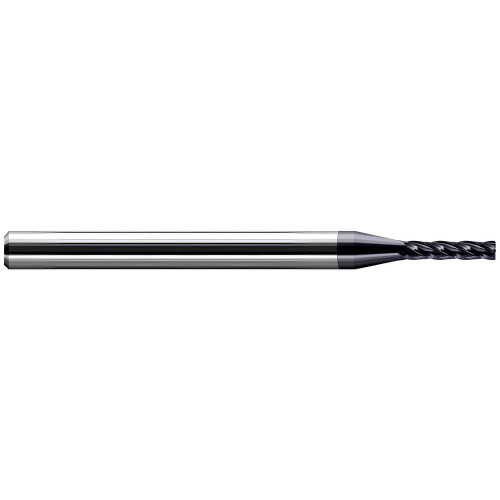

Harvey Tool Corner Radius End Mill: .020" Dia, .160" LOC, 2-1/2" OAL, .005" Corner Radius, 4 Flute, AlTiN, 949820-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-949820-C3
$116.80

Harvey Tool corner radius end mill, 4 flutes, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 949820-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0200
Length of Cut (Decimal)
0.1600
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Corner Radius (Decimal)
0.0050
Number of Flutes
4
Shank Diameter (Fractional)
1/8
Cutting Diameter (Metric)
0.50
Size System
Decimal
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Corner Radius
LxD Ratio
8xD
Material
Solid Carbide
Harvey Tool Corner Radius End Mill: .020" Dia, .160" LOC, 2-1/2" OAL, .005" Corner Radius, 4 Flute, AlTiN, 949820-C3
$116.80
